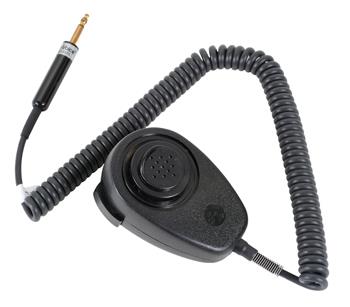

The 602T is a handheld dynamic microphone designed for highly articulate speech transmission under high ambient noise. The 602T uniquely meets the specialized requirements of airline, two-way radio and industrial applications. Transistorized with a pressure-gradient microphone utilizing three sound entrances for reduction of inter-facing ambient noise. This mic is unexcelled at discriminating between near and distant sounds for maximum ambient noise rejection.
- Compact single stage transistor amplifier
- Specially stabilized
- Highly reliable
- EMI and RFI Protected
- Greater Durability
- Lightweight
- Different connectors available
- Three mounting options
- Coiled cord
- FAA TSO approved
| TSO: | C58a |
|---|
Specifications
Weight:
325 g (11.4 oz)
Dimensions:
101.6 mm (4.0 in) length, less hanger, 72.1 mm (2.84 in) width 59.4 mm (2.34 in) depth
Type:
Amplified Dynamic Frequency Response: 300 - 5,000 Hz
Impedance:
Matches standard aircraft carbon circuitry Sensitivity: 400 mV ±3 dB for 114 dB re 20u pascals Current Drain: 12.3 mA at 8 Vdc (12-volt system) 25.0 mA at 16 Vdc (24-volt system)
Case Material:
Black ABS Certification: FAA TSO C58a, Category B
Unit of Measure: EACH
Supplier/Manufacturer SKU: 602-3375
Mil Spec, TSO, Certification: C58a
HS Code: 8518.10.0000
