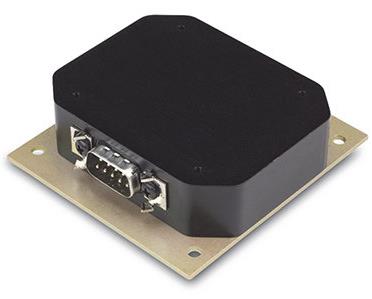

The model MD32 Remote Magnetometer, part number series 6420032-( ), extends the functionality of the MD302 Standby Attitude Module to a full air data, attitude and heading reference system (ADAHRS) solution. By providing magnetic heading data, the MD32 enables the MD302 to independently meet the gyro-stabilized heading indication requirements of TSOC6e as part of the integrated cockpit display, or as a remote data source.
The MD32 provides ARINC 429 data by way of a simple 4-wire shielded cable connecting data and power to the MD302. As an added benefit, the backup battery integral to the MD302 is also capable of supporting the MD32 Remote Magnetometer in the case of aircraft power loss (MD302 Mod 2 versions or greater).
The MD32 option for the MD302 is suitable for certified aircraft in 14 CFR, Part 23, 25, 27, or 29. The MD32 series Remote Magnetometer is FAA certified to TSO-C6e, with embedded software designed to RTCA/DO-178C, Design Assurance Level A (DAL A), and tested to the rigorous environmental standards of RTCA/DO-160G.
Highlighted features include: all solid-state components, easy and flexible installation, on-aircraft calibration, and a small, light-weight housing appropriate for installations in a wing or tail location.
