V73263 is a 75 ohm coaxial cable with low VSWR and attenuation characteristics for high-definition digital video applications.

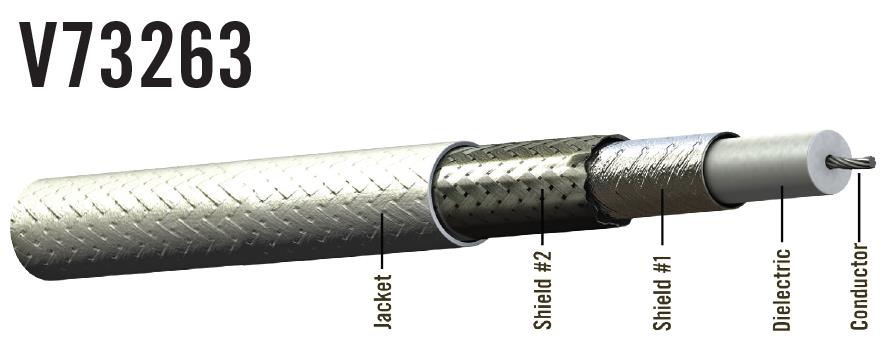

The V73263’s construction includes a silver-plated copper center conductor, a foamed fluoropolymer dielectric and is double-shielded with a helically-wound silver-plated copper strip and a tin-plated copper braid. This combination yields better than -110 dB shielding effectiveness. Because of the critical effect of impedance-matched terminations, a comprehensive family of 75 ohm connectors are available.
Conductor: Silver-Plated Copper
Dielectric: FEP
Shield #1: Silver-Plated Copper Spiral Wrap
Shield #2: Tin-Plated Copper Braid
Jacket: Extruded ETFE, White (Laser Markable)
Physical Data
Conductor: 26 AWG Stranded SPC
Temperature Range: -55 to +150°C
Outer Diameter: in (mm) 0.125 (3.18)
Minimum Bend Radius: in (mm) 0.65 (16.51)
Weight: lbs/100 ft (kg/100 m) 1.5 (2.2)
Electrical Data
Impedance: 75 ohms
Capacitance: pF/ft (m) 16 (52.5)
Velocity of Propagation: 80%
Time Delay: ns/ft (m) 1.27 (4.17)
Shielding Effectiveness: dB min -110
DC Resistance: ohms/1000 ft (m) 34.5 (113.2)
