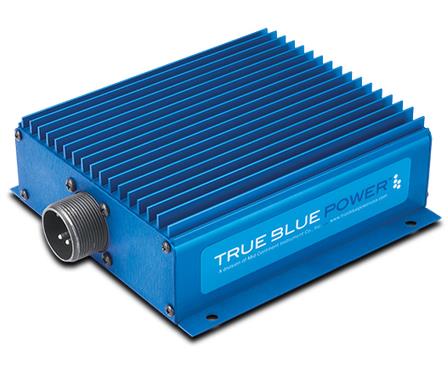

TI256 DC to AC Inverter

115/26 VAC, 250 VA, 400 Hz, Sine wave

• Supplies 250 watts of power to multiple cabin accessories
• Compact design — lighter and smaller than competing inverters
• Lightweight — 2.6 lbs
• Remote On/Off feature
• 250 VA output power
• 87 – 90% efficiency
• Input Voltage: 20 – 36 VDC
• Input Current: 10A at 28 VDC input
• Output Voltage: 115/26 VAC ± 3%
• Frequency: 400 Hz ± 0.1 Hz
• Single phase, true sine wave output
• Input transient, overload, and short-circuit protection up to 150% of rated load without damage
• Rated from –65°F to +160°F (-55°C to +70°C)
• FAA TSO-C73 certified and RTCA DO-160G qualified
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty

Input Voltage
20 – 36 VDC

Input Current
10A at 28 VDC input

Output Voltage
115/26 VAC ± 3%

Output Power
250 VA

Output Waveform
Single phase, true sine wave,
< 3% total harmonic distortion

Output Frequency
400 Hz ± 0.1 Hz

Efficiency
87 – 90%

Power Conversion Method
Current mode control

Weight
2.6 lbs

Altitude
55,000 ft

Humidity
Tested to greater than 95% for 10 days, temperature cycle of 100°F to 150°F

Temperature
-65°F to +160°F (-55°C to +70°C)

Protection
Input transient, overload, short-circuit protection
(up to 150% of rated load without damage)
Ground fault interrupter (GFI) protection

Mating Connector
MS3106A-18-9S (MCI P/N 9016905-1, -2)

Case
Anodized aluminum extrusion, blue

Certification
FAA TSO-C73 certified and RTCA DO-160G qualified
