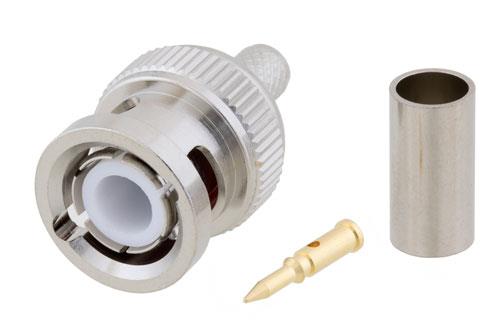

The PE4044 BNC male connector features a crimp/solder attachment for RG55, RG141, RG142, RG223, and RG400 coaxial cable. The connector operates up to a maximum frequency of 4 GHz and offers VSWR of 1.3:1. This BNC connector has a brass body with nickel plating and uses brass contact.
Features
- BNC male connector
- MIL-STD-348A
- 50Ω impedance
- 4 GHz Max. operating frequency
- VSWR 1.3:1
- Gold-plated brass contact
Specifications
Weight:
0.027 lb (12.25 g)

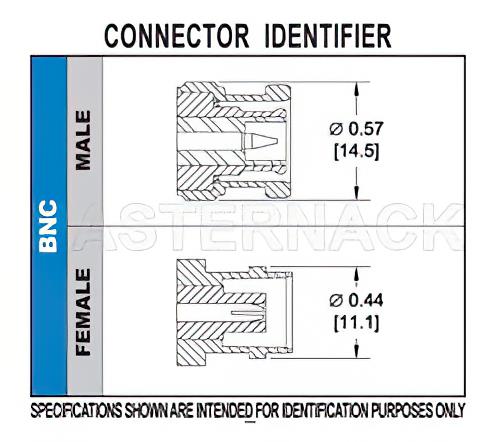

Dimensions:
1.13 x 0571 in (28.7 x 14.5 mm)
Body Geometry:
straight
Connect Interface Types:
RG55, RG141, RG142, RG223, RG400
Contacts:
gold-plated brass contact
Minimum Contact Plating:
30 µ-in
Unit of Measure: EACH
Supplier/Manufacturer SKU: PE4044
Mil Spec, TSO, Certification:
HS Code: 8536.69.4010
HAZMAT:
UN#:
