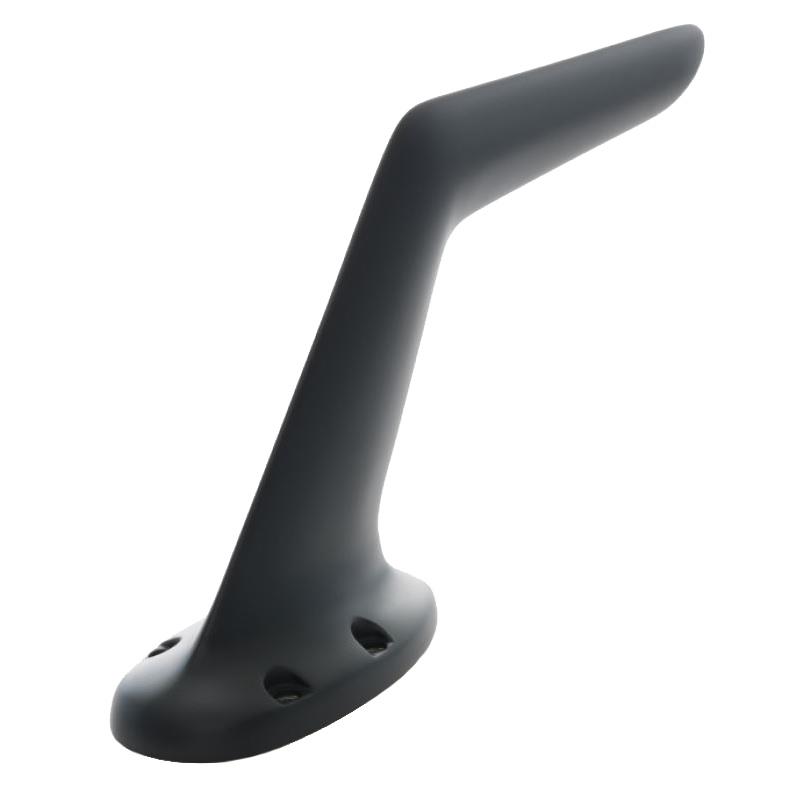

The UF10-825 is a UHF communications antenna that offers coverage in the 225 to 512 MHz frequency band. The antenna has the same form and footprint as DG PN VFS10-90-( ) antenna. It is qualified to MIL-STD-810C.
ELECTRICAL
Frequency: 225-512 MHz
VSWR: 2.0:1
Impedance: 50 Ohms
Polarization: Vertical
Power Handling: 100 Watts
Radiation Pattern: Omnidirectional

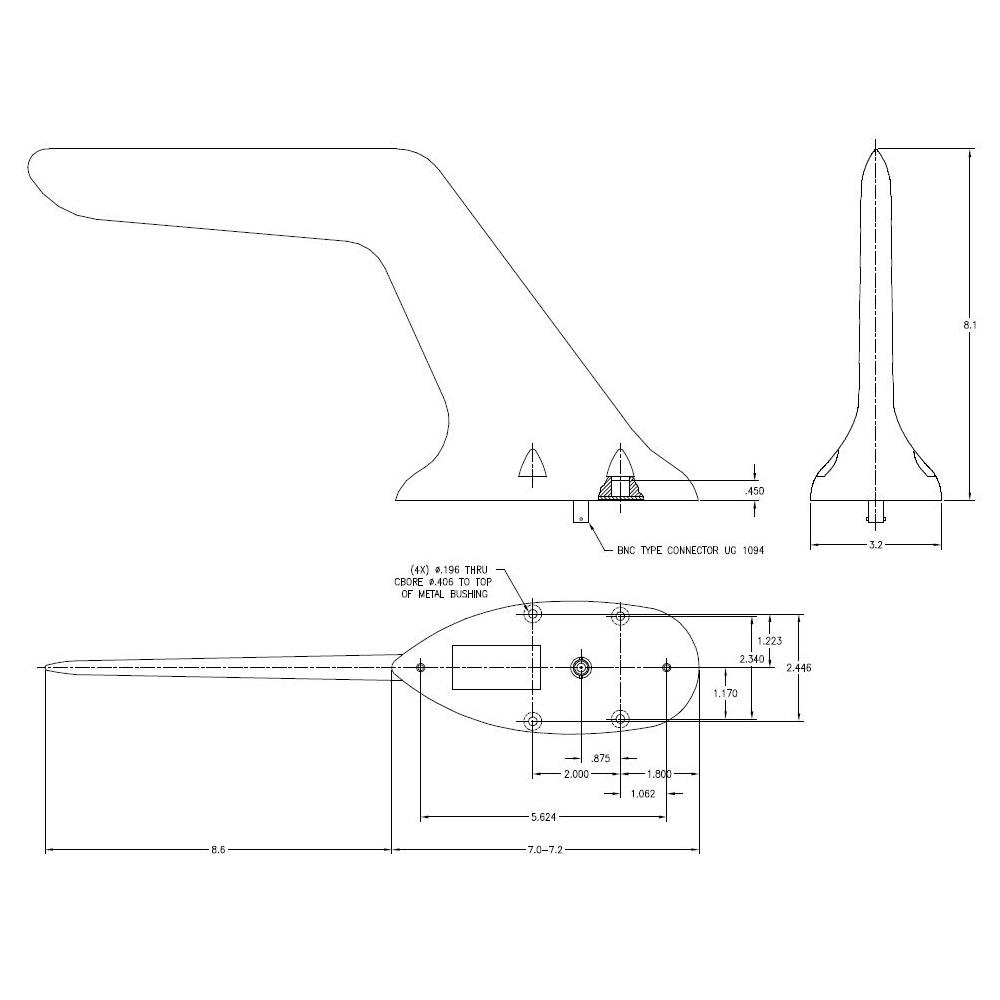

MECHANICAL
Connector: BNC
Weight: 1.2 Lbs. max (0.54 kg)
Height: 8.1 in. (205.7 mm)
Finish: Flat Black
Construction: Fiberglass
ENVIRONMENTAL
Designed to MIL-STD-810C
Speed Rating: 600 knots
Unit of Measure: EACH
Supplier/Manufacturer SKU: UF10-825
Mil Spec, TSO, Certification: MIL-STD-810C
