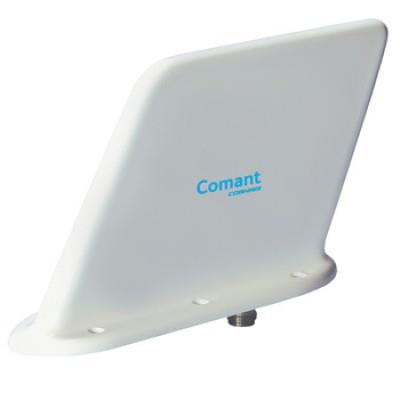

The CI 285 antenna is a six-through-hole-mount style UHF communications blade antenna with an N connector. This antenna is designed to support the 400–960 MHz frequency range and is suitable for bottom mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft.
Features
- Vertically polarized omnidirectional pattern
- Highly efficient electrical performance
- DC grounding for lightning protection
- 6-hole mounting
- N connector
- Extremely wide band
- Low profile
- Low drag
- Light weight
Specifications
Weight:
0.75 lb
Height:
5.20 in
Frequency:
400–960 MHz
VSWR:
2.0:1
Polarization:
Vertical
Radiation Pattern:
Typical 1/4 wave stub
Impedance:
50 Ω
RF Power:
100 W
Material:
Lexan
Finish:
White Polyurethane Enamel
Connector:
N Female
Temperature:
-55ºC to 85ºC
Altitude:
55,000 ft
RTCA Environmental:
DO-160C
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 285
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
