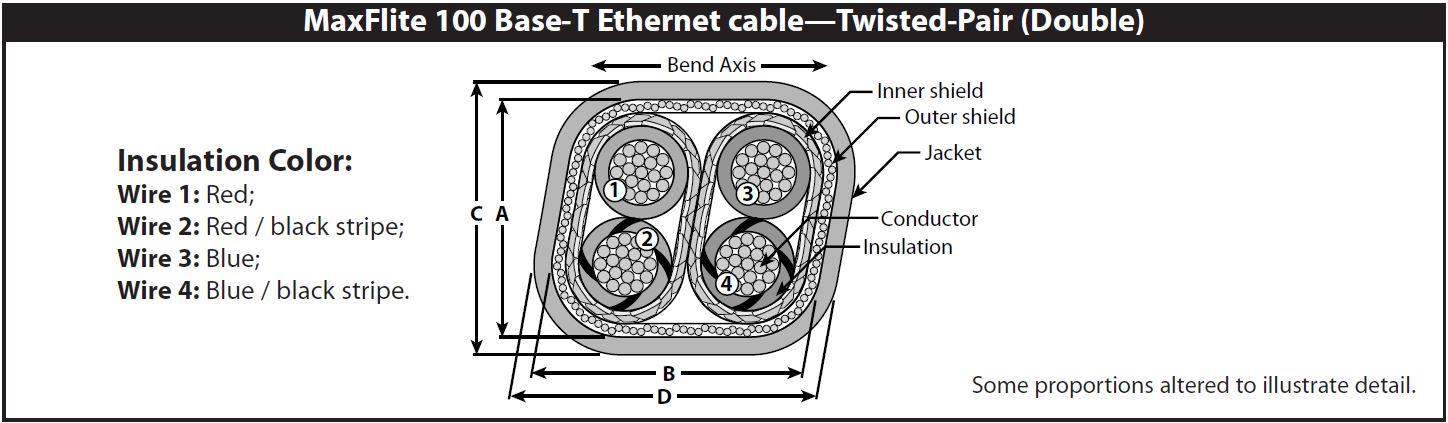

MaxFlite data cables are high-performance, highspeed 100 Base-T Ethernet cables designed for use in aircraft IFE (In-Flight Entertainment) systems. They are also ideal for other applications using IEEE 1394, ARINC 629, and similar protocols. These cables feature our advanced LTE extruded expanded PTFE dielectric for increased velocity of propagation, and are available as quad, or twisted pair (single or double) constructions. They can also be used as components in more complex cables with additional components such as power wires, coaxial cables, or other types. MaxFlite cables meet the flammability requirements of FAR 25.853, and the smoke and toxicity requirements of Boeing and Airbus ABD0031.
Performance: Temperature rating: 150° C. Higher temperature ratings (up to 260° C) available with plating other than tin on shield wires.
Jacket: Transparent blue FEP.

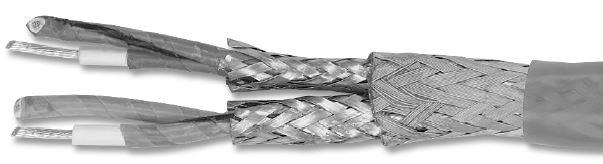

Outer shield: Round tin-plated copper braid, 85% minimum coverage.
Inner shield: Flat tin-plated copper braid, 92% minimum coverage.
Component wire insulation: LTE extruded expanded PTFE with sintered PTFE tape jacket.
Component wire conductor: Stranded SPC or SPCA.
Identification: Marker tape under jacket.
Options: Other insulation or shield materials and/or plating available on request.
