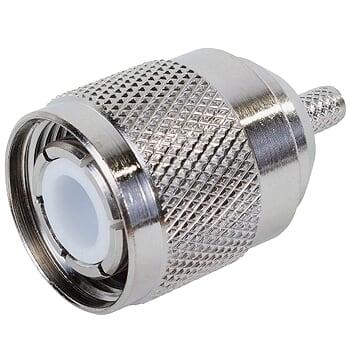

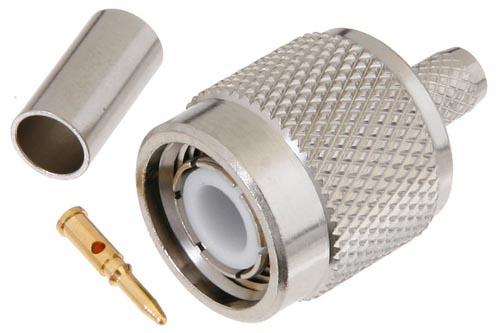

The PE4047 TNC male connector features a crimp/crimp attachment for RG55, RG142, RG223, RG400, and RG141 coaxial cable. The connector operates up to a maximum frequency of 6 GHz and offers VSWR of 1.5:1. This TNC connector has a brass body with nickel plating and uses brass contact.
Features
- TNC male connector
- MIL-STD-348A
- 50Ω impedance
- 6 GHz Max. operating frequency
- VSWR 1.5:1
- Gold-plated brass contact
Specifications
Weight:
0.033 lb (14.97 g)
Dimensions:
1.097 x 0.571 in (27.86 x 14.5 mm)
Body Geometry:
straight
Connect Interface Types:
RG55, RG142, RG223, RG400, RG141
Contacts:
gold-plated brass contact
Minimum Contact Plating:
30 µ-in
Unit of Measure: EACH
Supplier/Manufacturer SKU: PE4047
Mil Spec, TSO, Certification:
HS Code: 8536.69.4010
HAZMAT:
UN#:
