SAE AS22759 wire is a fluoropolymer–insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.
M27500-24TE3T14 meets SAE AS22759/16 specifications and is designed for aerospace applications for commercial and military aircraft. It has a stranded tin-plated, copper conductor, Extruded ETFE dielectric, a rating of 600 volts and 150°C.

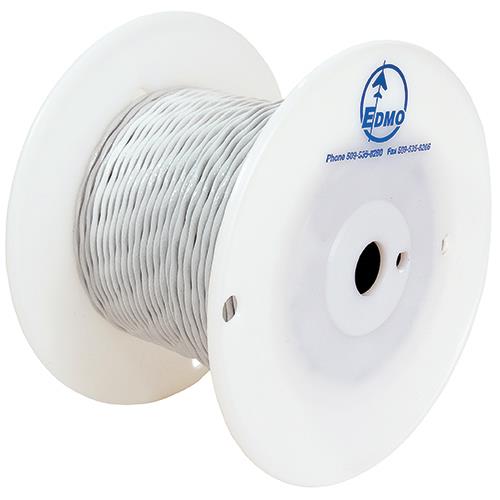

This M27500-24TE3T14 extruded ETFE tefzel wire (EDMO# 24TE3T14) has three, tin-plated 24 AWG conductors with extruded ETFE insolation, a 150°C rating. Colored white.
- 600 volt rating
- 150°C temperature rating
- Excellent thermal stability
- High reliability
- High break strength and flex life
- High abrasion resistance
