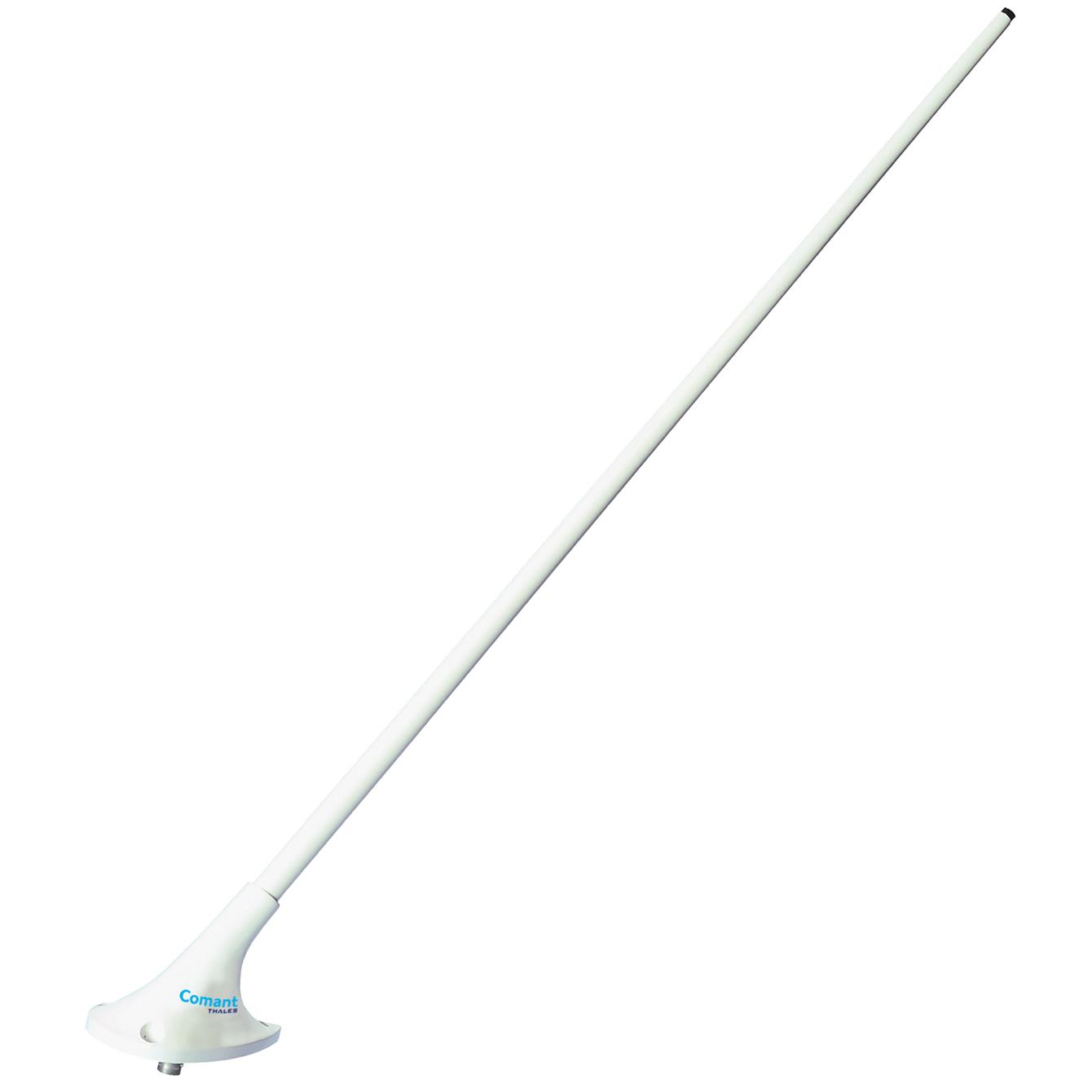

The CI 175 antenna is a three-through-hole-mount style VHF communication whip antenna with a BNC port. This antenna features the smallest footprint in the VHF communication product line and is suitable for top mounting on light fixed-wing single-engine aircraft and helicopters.
Features
- Frequencies Covered: 118-137 MHz
- Upgraded to the new RTCA DO-160D environmentalrequirements
Specifications
Weight:
0.5 lb
Height:
18.75 in
Frequency:
118-137 MHz
VSWR:
2.5:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance RF:
50 Ω
Power RF:
50 W
Material:
Cast Housing/Fiberglass Whip
Finish:
White Polyurethane Enamel
Connector:
BNC Female
Temperature Range:
-55°C to 85°C
Altitude:
50,000 ft
Air Speed:
250 Knots TAS
Federal Specifications:
FAA TSO C37d, C38d
RTCA Environmental DO-160D
Dimensions: 80.00 x 90.00 x 625.00 mm (H x W x L)
Weight: 412.00 g
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 175
Mil Spec, TSO, Certification: C37d, C38d
HS Code: 8529.10.4000
HAZMAT:
UN#:
