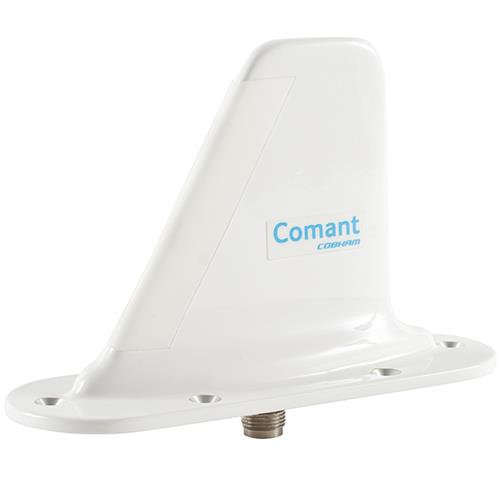

The CI 105-17-L is a top of the line ADS-B performance antenna capable of both IN and OUT processing. The single connector blade antenna can be used for ADS-B, TIS-B, UAT, DME or ATCRBS Transponder, plus Mode S.
This ADS-B/UAT antenna holds 5 different TSO’s all in the familiar transponder antenna footprint and tiny blade size. Perfect for diversity antenna installations to ensure unsurpassed coverage. Utilizes a standard 6-hole mounting pattern.
Features
- Includes a TNC connector
- Holds 5 different TSO’s
- Specially for receiving ADS-B In benefits like traffic, weather, etc.
- Covers ADS-B In/Out across 1090 ES and 978, DME, and backwards compatible with Mode S
- 6 hole mounting pattern for robustness; great for helicopter installations
Specifications
Weight:
0.3 lb
Finish:
Polyurethane White Paint
Connector:
TNC (female)
Frequency:
960 MHz – 1220 MHz
1030 MHz – 1090 MHz
978 MHz
1090 ±1 MHz
VSWR (maximum):
2.0:1
1.5:1
1.7:1
1.5:1
Return Loss (maximum):
9.54 dB
-13.98 dB
-11.73 dB
-13.98 dB
Polarization:
Vertical
Radiation Pattern:
Omni-directional
Impedance:
50Ω
Power RF:
1 KW, peak
Certifications:
TSO-C66c, 960-1215 MHz
TSO-C74d, Class A, 1030-1090 MHz
TSO-C112e, 1030-1090 MHz
TSO-C154c, Class A3, 978 MHz
TSO-C166b, Class A, B, 1090 ± 1 MHz
RTCA/DO-160G, ENV. CAT.:
[F2X]A CE[R(C,C1)H(R)U2(F,F1)S(L)]XSFSXSXXXX[XXX][XX]X[XXXXXX][XX]AXX
