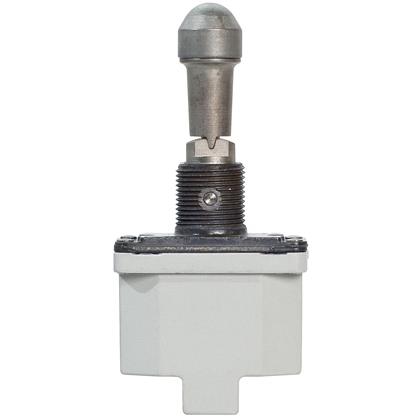

The 8504K series are environmentally sealed toggle switches that are completely protected from dust, moisture, and other contaminates. The lever lock mechanism prevents accidental switch operation.
Version 8504K6 is a double-pole, double-throw toggle switch. Positions: ON-ON with D style bushing (locked out of center position)
Features
- Locking lever safety mechanism (must be pulled outward for toggle operation)
- Threaded panel mount
- Thermoset molding materials meet flame retardant requirements
- Molded-in terminal inserts and terminal numbers
- Environmentally sealed per MIL-S-3950
- MS approved and QPL'd per MIL-S-3950
- Life: 20,000 operations at rated load 40,000 operations mechanical life
Specifications
Bushing:
15/32"" - 32 thread
Temperature Range:
-85F to +160F (-65C to +71C)
Contact current max:
20A
Contact Voltage AC:
115V nominal
Contact Voltage DC:
28V
Contact configuration:
Double-pole, Double-throw (DPDT)
Switch operation:
ON-ON
MS part number:
MS24659-23D
