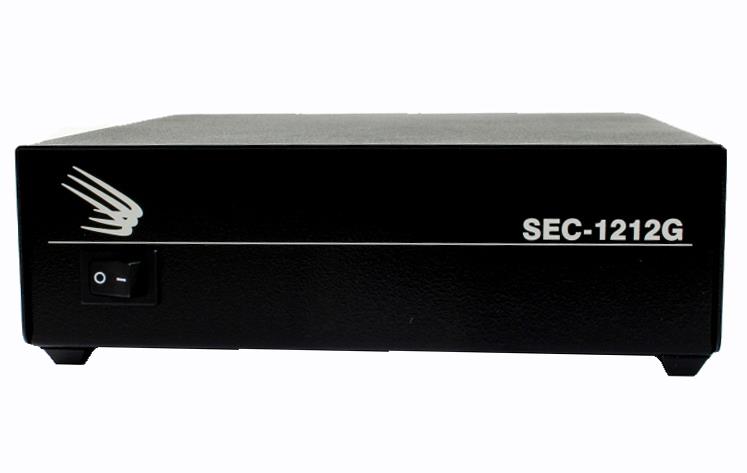

ICOM PSEC-1212G Switch Mode Power Supply Unit 12V 10Amp
Power supply for the IC-A120 if it is used as a base station unit. Requires MB-SMS cabinet and IC-A120E Radio - both items are sold separately.
This highly efficient AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 9.5 Amps with an AC input of 115-230 Volts, 60-50 Hz. These advanced switch mode DC power supplies were designed specifically for use with land mobile radio. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with “SCHUKO” plug.
FEATURES
• Advanced switch-mode technology
• Reliable power with minimum weight and size
• Circuit innovations minimize output voltage ripple and RFI
• 2 Year warranty
APPLICATIONS
• Two way radio base stations
• Communications systems
• Test equipment
• Automotive & Marine displays
• 12 Volt lighting systems
SPECIFICATIONS
| Input voltage | 115-230 VAC |
| Output voltage | 13,8 VDC |
| Dimensions | 190 x 180 x 60 mm |
| Output | 9.5 Amps |
| Fuse value | 2.5 Amps |
| Weight | 1,45 Kg |
Protections
Short circuit: Yes
Overload: Yes
Reverse polarity: Yes
Over Temperature: Yes
Connections
AC Input: Detachable power cord with European schuko plug
DC Output: Terminals with tubular hole (5mm) with set screw
Operating Temperature: 0-40ºC
Dimentions: (LXWXH) 190X180X60 mm
Weight: 1,45 Kgs
Standards: EN 61000-6-3 EN 61000-6-2 EN 61000-3-2 EN 61000 -3-3 EN 60950
Energie Efficiency Certification: CEC / DOE / MEPS
Safety Standard: UL60950-1 EN60950-1 (ETL)
EMI Standard: EN55022 class B EN61000-3-2,3
EMS Standard: EN61000-4-2,3,4,5,6,8,11
FCC: Part 15 subpart B class B
C-Tick: AN/NZS CISPR22 class B
