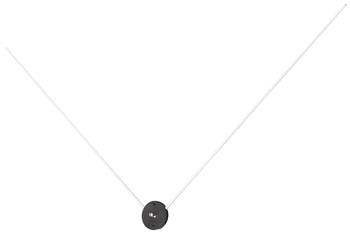

The CI 259E antenna (EDMO# CI-259-E) is a two-through-hole-mount style VOR/LOC/GS V dipole antenna with a BNC port. It features a single navigation output that can be used in conjunction with signal diplexers to achieve the desired avionics signal input. This antenna is designed with fixed radiator elements and is suitable for mounting on the vertical stabilizer or tail boom on light fixed-wing single-engine and multi-engine aircraft and helicopters.
Features
- 108-118 MHz (VOR/LOC), 329-335 MHz (GS) frequencies
- Integral ferrite balun
- Fixed element
- Horizontal polarization
- Dipole radiation pattern
Specifications
Weight:
0.35 lb
Height:
16 in
Frequency:
108–118 MHz (VOR/LOC)
329–335 MHz (GS)
VSWR:
3.0:1
Polarization:
Horizontal
Radiation Pattern:
Dipole
Impedance:
50 Ω
Power RF:
Receive Only
Material:
Delrin Housing/Polyester Glass Laminate Over Stainless Steel Radiators
Finish:
Black Housing/Glossy White Whips
Connector:
BNC
Temperature:
-55ºC to 85ºC
Altitude:
50,000 ft
Mounting:
Two-hole mounting pattern
FAA TSO:
C34c, C36c, C40a
RTCA MOPS:
DO-192, DO-195, DO-196
RTCA Environmental:
DO-160
