VOR/LOC Coupler, BNC, Splitter

Out of stock
Product code: AV-547

The AV-547 splitter feeds two navigation receivers from one antenna. This product is a direct replacement for the CI 502.

$0.00
RRP: $265.00

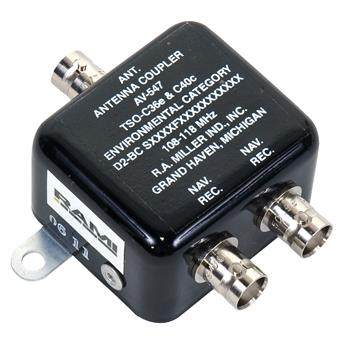

The AV-547 splitter feeds two navigation receivers from one antenna. The matching circuitry is enclosed in a durable, lightweight aluminum housing for superior mechanical and environmental stability. The splitter operates at altitudes of up to 50,000 ft. This product is a direct replacement for the CI 502.

Features

  • Direct replacement for the CI 502
  • Aluminum housing
  • 108-118 MHz frequency range
  • Backed by the RAMI Limited Lifetime Warranty

Specifications

Application:
VOR/LOC (Receive Only)

Frequency:
108–118 MHz

Impedance:
50 Ohms Nominal

VSWR:
1.4:1 Maximum

Insertion Loss:
3.5 dB Maximum

Isolation:
30 dB Minimum

Connectors:
(3) BNC Female

RF Power Capacity:
Receive Only

FAA Approvals:
TSO-C36e, TSO-C40c

Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-547
Mil Spec, TSO, Certification: C36e, C40c
HS Code: 8529.10.4000
