DR25 heat shrink tube is specially formulated for optimum performance in high-temperature fluid and long term heat resistance. DR25 has excellent resistance to aviation and diesel fuels, hydraulic fluids, and lubricating oils. Additional applications for DR25 tubing are as a jacketing material for cables and harnesses in military and motorsports vehicles.

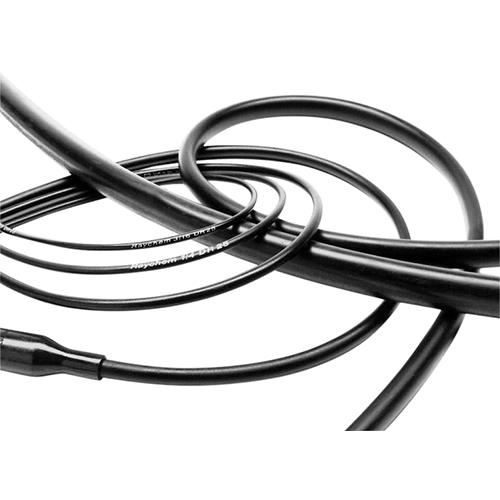

Black 1 inch inside diameter heat shrink tubing.
Features
- Flame retardant
- System 25 tubing
- Shrink ratio 2:1
- RoHS compliant
Specifications
Size:
1 in
Inside Diameter:
25.4 mm (1 in), expanded
12.7 mm (0.5 in), recovered
Recovered Wall Thickness:
1.78 ±0.28 mm (0.070 ±0.011 in), after heating
Operating Temperature:
-75°C to 150°C (-103°F to 302°F)
Approvals:
AMS-DTL-23053/16*
VG95343 Part 5 Type D
VDE 0341/Pt 9005
Def Stan 59-97 Issue 3 Type 6B
BS 4G-198 Part 3 10A
Unit of Measure: FEET
Supplier/Manufacturer SKU: DR25-1-0
Mil Spec, TSO, Certification:
HS Code: 3902.30.0000
HAZMAT:
UN#:
