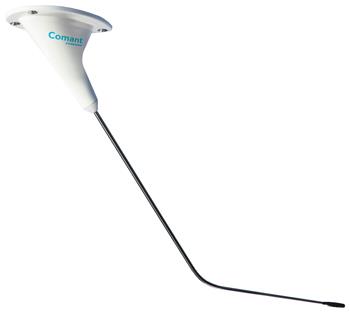

Designed for use over the public service FM extended frequency 2-meter band. Suitable for bottom mounting for light fixed wing single engine / multiengine aircraft.
Applications
Light Fixed Wing Single Engine
Light Fixed Wing Multi-Engine
Warranty: 3 years
Always consult your installation shop for best application.
Frequencies Covered
136 - 174 MHz (VHF - FM)
Specifications
Frequency 136-174 & 138-174 MHz
VSWR 3.0:1 Max
Antenna Gain 2.5dB Min at Beam Max
Polarization Vertical
Radiation Pattern Omnidirectional
Impedance 50 Ohms
Power 50 Watts
Weight 0.60 lb
Height 9.5 in
Material Die Cast housing / Stainless whip
Finish Glossy White
Connector BNC (female)
Temperature -55 C to +70 C
Altitude 25,000 ft
FAA TSO C37c (Class 1), C38c
RTCA Environmental DO-160B
Gasket B29205
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 292-3
Mil Spec, TSO, Certification: C37c (Class 1), C38c, DO-160B
HS Code: 85291000
