B
Benefits and Specifications
Benefits
- Provides 5.0 amps
- 22 – 32 VDC input voltage
- Delivers up to 100 watts of power per PD port

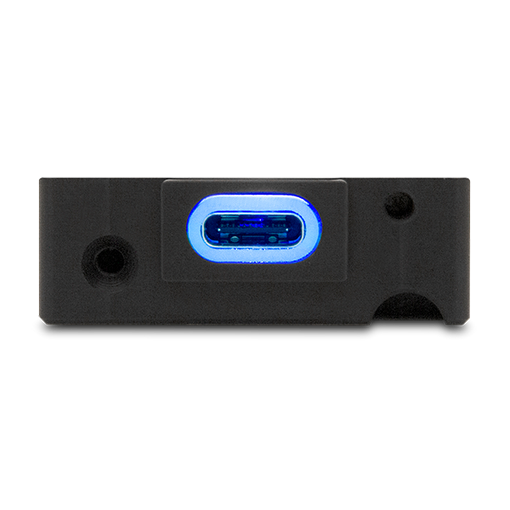

- Single, USB-C PD connector
- Compatible with USB-C PD and traditional USB-C devices
- Short circuit, power surges, overload and over temperature protection
- In-seat, cabin, cockpit and galley applications
- Designed and built in Wichita, Kansas, USA
- Limited lifetime warranty
Specifications
Input Voltage
22 – 32 VDC
Input Power
100 W per port (maximum)
Output Voltage
USB-C PD; 5 – 20 VDC per port (variable)
Output Power
USB-C PD; 100 W per port (maximum)
Output Current
5.0 amps per port
USB Connector
Single USB-C PD configuration
Weight
1.0 ounces (28 grams)
Dimensions
1.5″W x 0.52″H x 2.0″D
Mating Connector Kit
MCI P/N 9017960 (included)
Mounting
Front or rear; faceplates and adapter plates (optional)
Installation
In-seat, cabin, cockpit and galley
Faceplates
9019351-1
9019384-3
Dust Covers
9019313-1
9019313-2
Case
Anodized aluminum, black
Certification
FAA TSO C71
EASA ETSO C71
RTCA DO-160G
Unit of Measure: EACH
Supplier/Manufacturer SKU: 6430360-37
Mil Spec, TSO, Certification: FAA TSO C71 EASA ETSO C71 RTCA DO-160G
HS Code: 8504.40.7001
HAZMAT:
UN#:
