Home ANTENNA | FM Extended Band, Bent Whip, BNC, 3-hole mount, RAMI

ANTENNA | FM Extended Band, Bent Whip, BNC, 3-hole mount, RAMI

Coming soon
Product code: AV-535

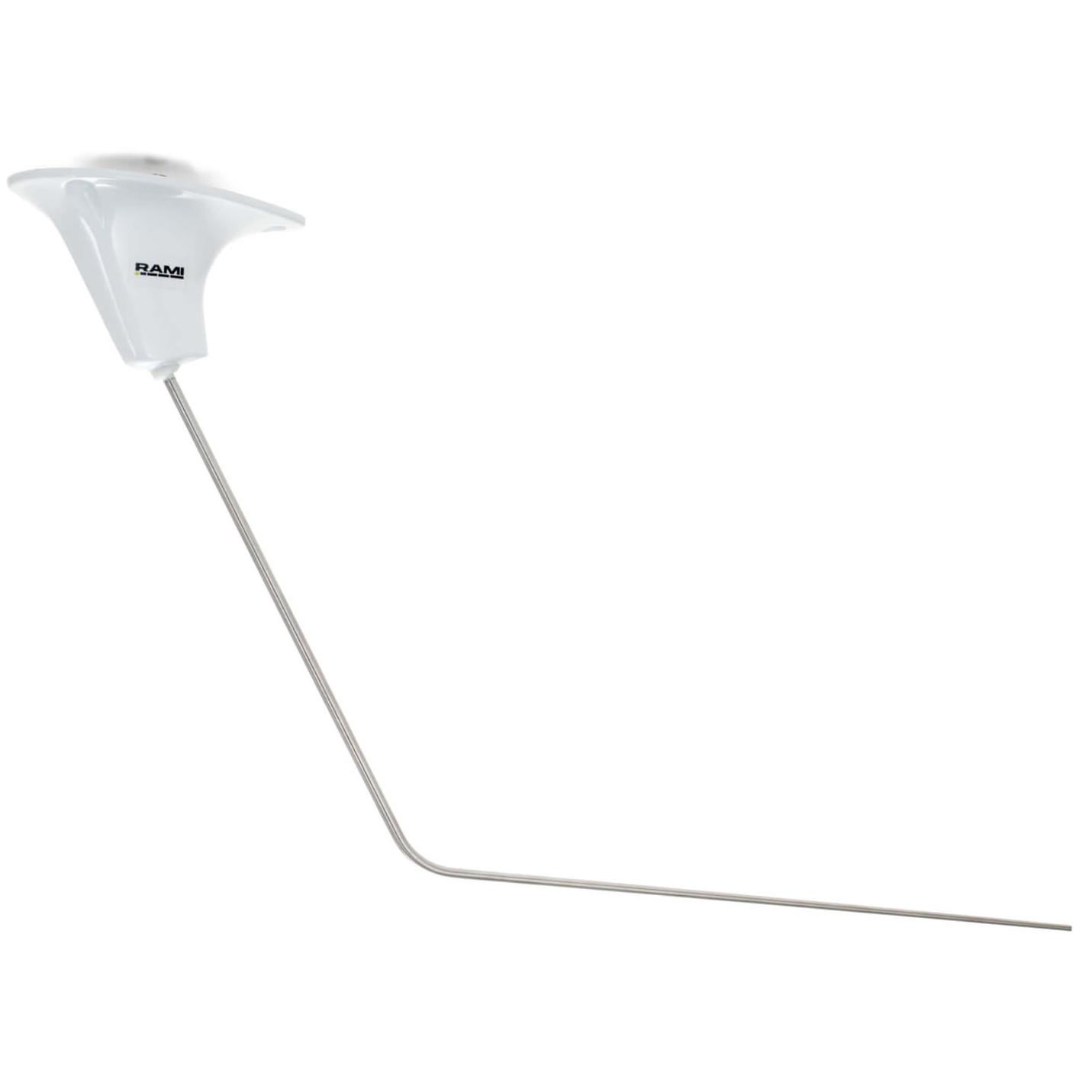

The AV-535 is a bent whip antenna suitable for belly mounting. It is a direct replacement for the CI 292-3.

$485.00 $0.00

It is designed to operate in the public service and business bands for airborne communication. The antenna is rated at speeds up to 350 mph and altitudes up to 50,000 feet.


Product Specifications
Model AV-535
Application FM Extended band
Frequency 138-174 MHz
Impedance 50 Ohms Nominal
VSWR 3.0:1 Maximum
Polarization Vertical
Pattern Omni-Directional
Connector “BNC” Female
RF Power Capacity 100 Watts
Color Gloss White
Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-535
Mil Spec, TSO, Certification: N/A
HS Code: 85291000
HAZMAT:
UN#:
