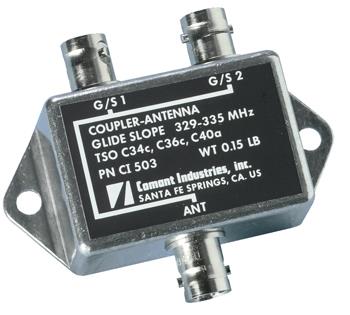

The CI 503 glide slope signal coupler is a two-through-hole-mount style coupler with BNC ports. This antenna separates a single GS antenna signal into two GS signals and is designed for GS only coupling applications. It is suitable for internal aircraft mounting.
Features
- For internal aircraft mounting
- FAA TSO authorized
- Frequencies covered: 329–335 MHz
Specifications
Weight:
0.20 lb
Height:
0.88 in.
Frequency:
329–335 MHz
VSWR:
1.5:1
Isolation:
18 dB
Insertion Loss:
3.5 dB
Impedance:
50 Ω
Construction:
Die Cast Aluminum
Finish:
Aluminum
Connector:
BNC Female
Mounting Location:
Internal
FAA TSO:
C34e
Dimensions: 60.00 x 85.00 x 145.00 mm (H x W x L)
Weight: 128.00 g
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 503
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
