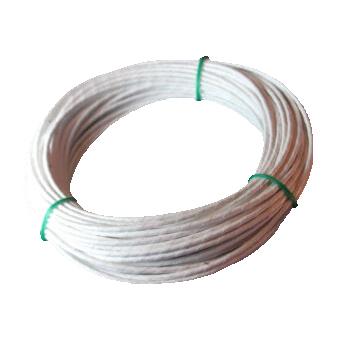

HOOK UP WIRE | 22G, White

SAE AS81044/12 XL Polyalkene /PVDF - 600V, 150°C

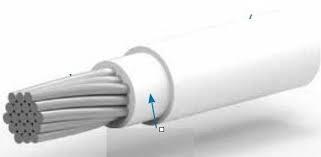

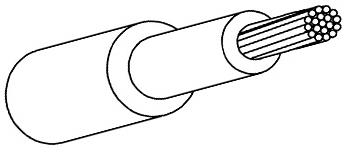

This dual layer, lightweight, high temperature wire offers outstanding performance that makes it suitable for many applications where high density cabling and harnessing are required. Besides offering size and weight advantages, these wires have excellent resistance to cut-through, abrasion, cold flow, shrink back, notch propagation and common chemicals. In addition, they strip and stripe easily, may be potted, and have low smoke characteristics. This wire should be considered for airframe, avionics, military vehicle, shipboard, missle, and other electronic applications.

Conductor: Soft Annealed Tin Plated Copper, Stranded
Operating Temperature: 150 deg C
Operating Voltage: 600 Volts
Insulation: Irradiation Cross-Linked Extruded Polyalkene PVDF
Jacket: Clear Irradiation Cross-Linked Extruded Polyvinylidene Flouride (PVDF) with a Wall Thickness of 0.003 +/-.001 (.076 +/-.025mm). Finished Wire Diameter and Weight.
