ProFIT® HIX general purpose polyolefin heat-shrinkable tubing is used for insulating, jacketing, bundling, and identifying wire and cables. HIX tubing is mechanically tough and resistant to abrasion and solvents while providing a longitudinal shrinkage less than 6%.

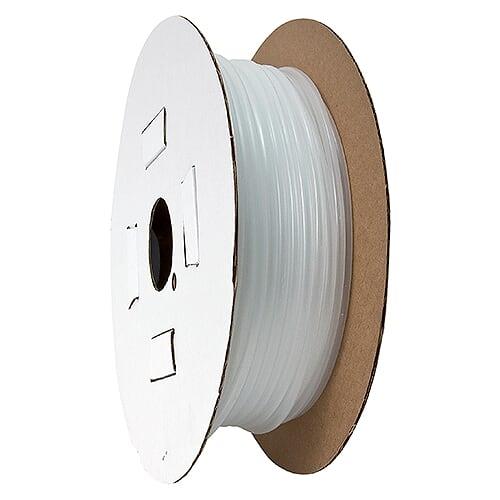

This HIX heat shrink tubing (EDMO# HIXR-3/32C) has a 3/32 inch diameter, colored clear, non-flame retardant, and comes on a 100 foot roll.
Specifications
Diameter:
3/32 in
Length:
100 ft roll
Minimum Expanded I.D.:
0.093 in (2.36 mm)
Maximum Recovered I.D.:
0.046 in (1.17 mm)
Recovered Wall Thickness:
0.020 in (0.50 mm)
Operating Temperature:
-67°F to 275°F (-55°C to 135°C)
Shrink Ratio:
2 to 1
Shrink Temperature:
250°F (121°C)
Color:
Clear (other colors available)
Application Specifications:
SAE-AMS-DTL-23053/5, Class 1 and 2
UL File Number:
E52612 (VW-1 except Clear)
Unit of Measure: FEET
Supplier/Manufacturer SKU: HIXR-3/32C
Mil Spec, TSO, Certification: M23053/5-203-C
HS Code: 3902.30.0000
HAZMAT:
UN#:
