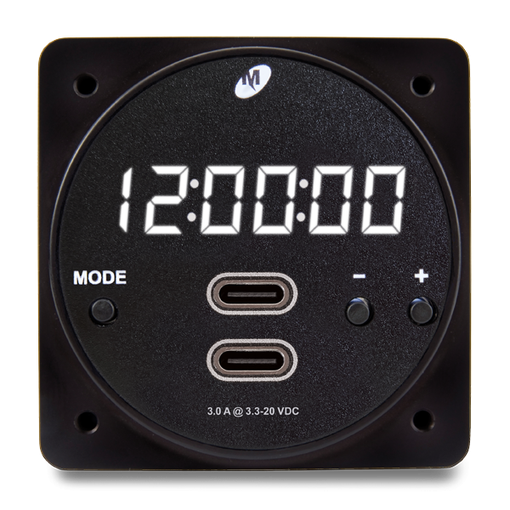

2-inch, Digital, 12–32 VDC in, 45W/3A out per port, Dual USB-C PD
8 MODES Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT, Secondary Air Temp
Benefits
- Six-digit, seven-segment LED clock
- Eight modes: Local Time, UTC / Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT and Secondary Air Temp
- Clock settings include 12- or 24-hour mode and seconds On or Off
- Manual and automatic lighting control with programmable dimming curves
- Internal, field-replaceable battery maintains time and Flight Timer memory without aircraft power
- Compact, 2-inch size fits standard panel cutout
- 45 watts / 3 amps USB power per port
- Compatible with Apple, Android and other USB devices
- Protects itself and the charging device from short circuit, power surges and over-current potential
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Specifications
Power Input
12–32 VDC; 107 W maximum
7.6 amps @ 14 VDC / 3.8 amps @ 28 VDC
USB Power Output
5 - 20 VDC (variable); 45 W, 3.0 A per port
Clock Accuracy
±15 seconds per month
Weight
5.0 oz (0.3 lbs)
Modes
Local Time, UTC / Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT and Secondary Air Temp
Operating Temp
-40ºC to 70ºC (-40ºF to 158ºF)
Altitude
55,000 feet
Mounting
Rear-panel mounted, (4) #6 screws
Dimensions
2.39″W x 2.39″H x 1.22″D
Connector Kit
MCIA P/N 9018178-1
USB Interface
Dual USB-C PD
Case
Anodized aluminum, black
Certification
FAA TSO certified to C71
EASA ETSO certified to C71
RTCA DO-160G qualified
