Ultima-S combines the latest generation of lithium battery technology and a smart design, which enables the unit to comply with the latest FAA / EASA lithium battery requirements (DO-227A & (E)TSO-142b). The unit can be manually activated by the crew members through the ELT’s switch and is also automatically activated immersed in water. The beacon’s location is determined through its embedded GNSS receiver, using both GPS and Galileo satellite constellations.
This Ultima-S ELT (EDMO# S1863501-03) does not include the return link service (RLS) functionality.
Faster signal detection and robust position acquisition thanks to its embedded GNSS receiver, using both GPS and Galileo satellite constellations
The Ultima-S ELT has been selected by Airbus & Boeing Manufacturers to equip their new aircraft programs on BFE basis.
The Ultima-S ELT has been installed by multiple airlines to retrofit their whole fleet with the latest generation of ELTs.
Specifications
Weight:
1.94 kg (with bracket)
Dimensions:
320 x 200 x 105 mm (with antenna)
Battery Type:
Lithium, MnO2
Battery Life:
6 years
ELT Type:
Category A; Class 2, COSPAS SARSAT ELT
Activation:
Manual & water switch (cat. A variants)
Signal/Message:
406 MHz, First Generation Beacon; Programmable protocols
121.5 MHz homing signal
253 MHz military homing signal
Location:
GPS and Galileo L1 internal receiver
Distress acknowledgement through Galileo RLS Type 1 (RLS version)

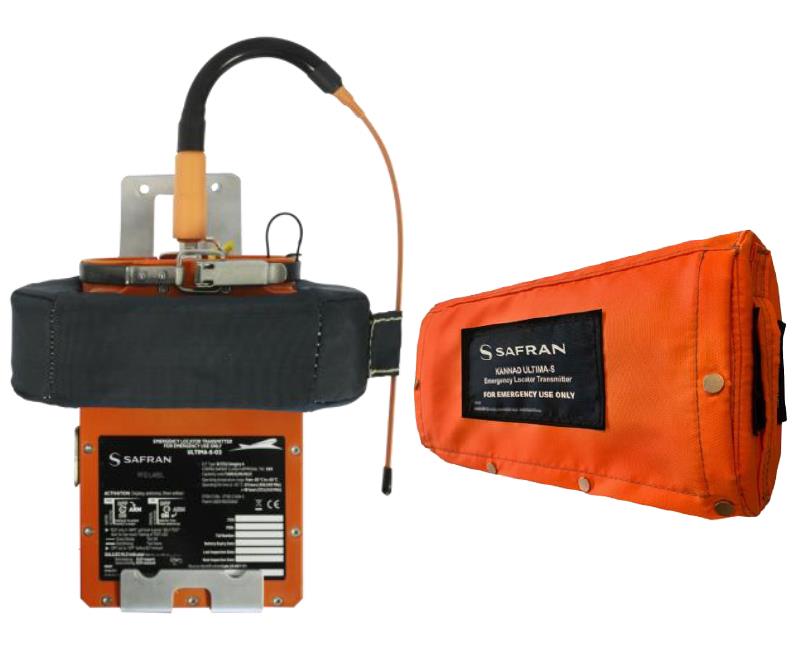

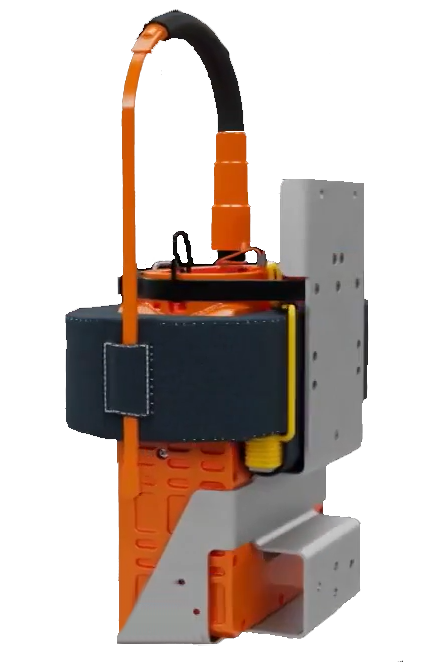

Mounting:
Horizontal & vertical with bracket, bag
Programming:
PR600 programmer or dongle, via dedicated connector
RFID tag
COSPAS SARSAT short self-test and GNSS self-test
Temperature Environment:
-20°C to 55°C (full operating lifetime)
-20°C to 30°C (storage)
Approvals & Certifications:
COSPAS SARSAT TAC 2350, 350
(E) TSO C126c, (E) TSO-C142b
