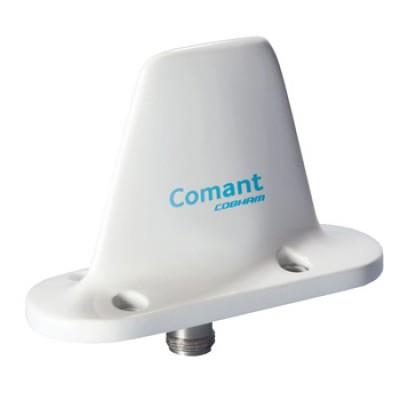

The CI 310 series ComDat antenna is a four-through-hole-mount style UHF communication/transponder blade antenna with a TNC port. This antenna is designed for 806–960 MHz (UHF) and 1030–1090 MHz (XPDR/ADS-B Out) frequency ranges and it is suitable for either top or bottom mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.
This CI 310 series ComDat antenna has a BNC Connector and a white finish.
Features
- Covers 806–960 MHz (UHF) & 1030–1090 (XPDR/ADS-B Out) MHz frequencies
- Vertical polarization
- Equivalent to 1/4 wave stub radiation pattern
- Molded base
- 4-hole mounting
- High density polyurethane
- White polyurethane enamel finish
- BNC female connector
Specifications
Weight:
0.32 lb
Height:
3.25 in
Frequency:
806–960 MHz & 1030–1090 MHz
VSWR:
1.75:1 @ 806–960 MHz
1.5:1 @1030–1090 MHz
Polarization:
Vertical
Radiation Pattern:
Equivalent to 1/4 Wave Stub
Impedance (RF):
50 Ω
Power (RF):
100 W
Material:
High Density Polyurethane:
Finish:
White Polyurethane Enamel
Connector:
BNC
Temperature:
-55ºC to 70ºC
Altitude:
50,000 ft
FAA TSO:
C74c, Class 1A
RTCA Environmental:
DO-160C
