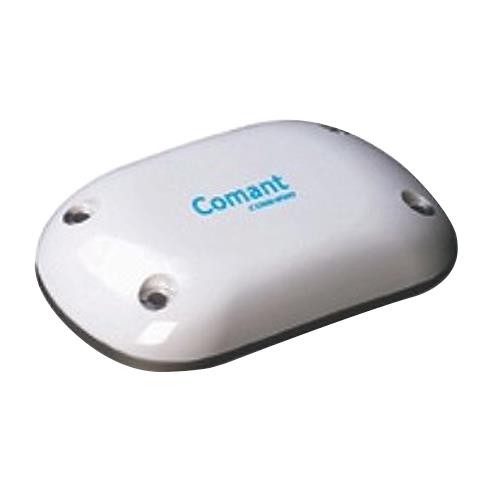

The CI 401-490 antenna is a four-through-hole-mount style Iridium Satcom rectangle antenna (ARINC 743A footprint) with a TNC port. This antenna is Iridium C159a certified and designed for airborne Iridium based telephone, email, asset tracking or safety services. It is suitable for top mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.
Features
- Covers 1616.0–1626.5 MHz Iridium frequency
- 3dB gain
- RHCP polarization
- Hemispherical radiation pattern
- TNC female connector
Specifications
Weight:
6.2 oz
Frequency:
1616.0–1626.5 MHz
VSWR:
1.5:1
Polarization:
RHCP
Radiation Pattern:
Hemispherical
Impedance RF:
50 Ω
Power Handling:
6.5 W
Lighting Protection:
DC Grounded
Gain:
3 dBic @ Zenith
Finish:
White Polyurethane Enamel
Connector:
TNC Female
FAA TSO:
C159a
RTCA Environmental:
DO-160G
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 401-490
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
