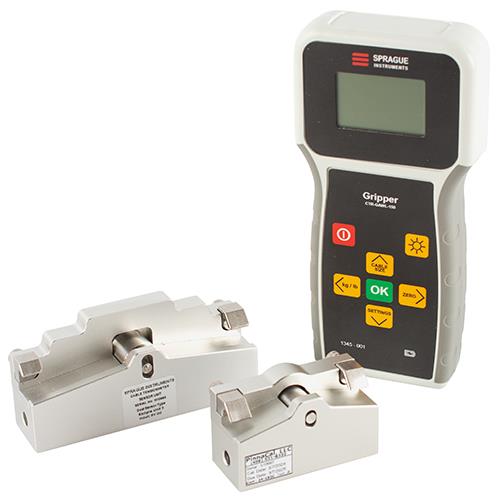

Wireless and Bridal Cable Tensiometer, 30lb & 150lb

Download User Manuals:

Wireless Gripper Manual (Dec 2022)

Bridal Cable Tension Meter Manual (January 2024)

The CTRDHWL150 digital cable tension meter provides technicians a simple method for maintaining correct cable tension in autopilot flight control systems. The small footprint allows CTRDHWL150 to fit into tight areas. The small sensor head and separate handheld display box make it easier to view the measurement readings while adjusting the cable tension. The informative display box screen shows the temperature, cable size, and battery strength. This tensiometer is simple to use and has no extra parts. The unit comes calibrated, certified, and ready to use out of the box. Just turn on the unit and select the correct cable size. The CTRDHWL150 has been designed so local calibration shops can certify their tools using the calibration information that is specified in user manuals. This tensiometer kit has a 10-150 pound range sensor unit and a 10-30 pound sensor unit.

• Supports 1/16, 3/32, 1/8, 5/32, 3/16 inch cable sizes
• Selectable units of measurement 0C and 0F
• Compact sensor head fits into tight spaces

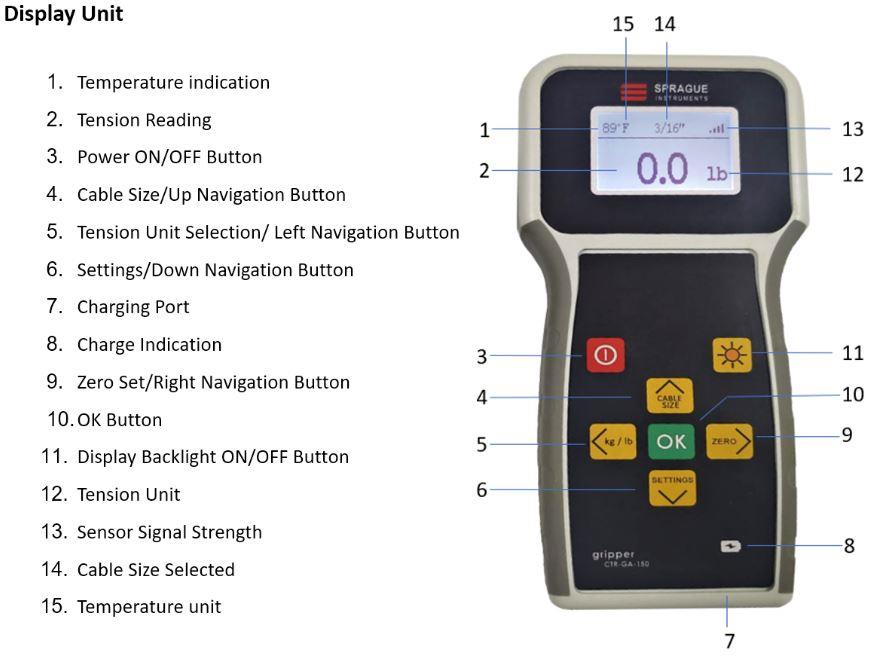

• Display screen shows temperature, cable size, and battery strength
• Works for a range up to 10 meters
• ±2% of Full scale Tolerance
• Comes with 10 to 30 pound range and 10 to 150 pound range sensors
• Back light ON/OFF display option
• Connects wirelessly via Bluetooth
• Carrying case included
