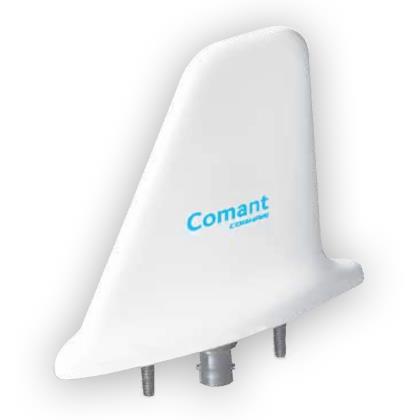

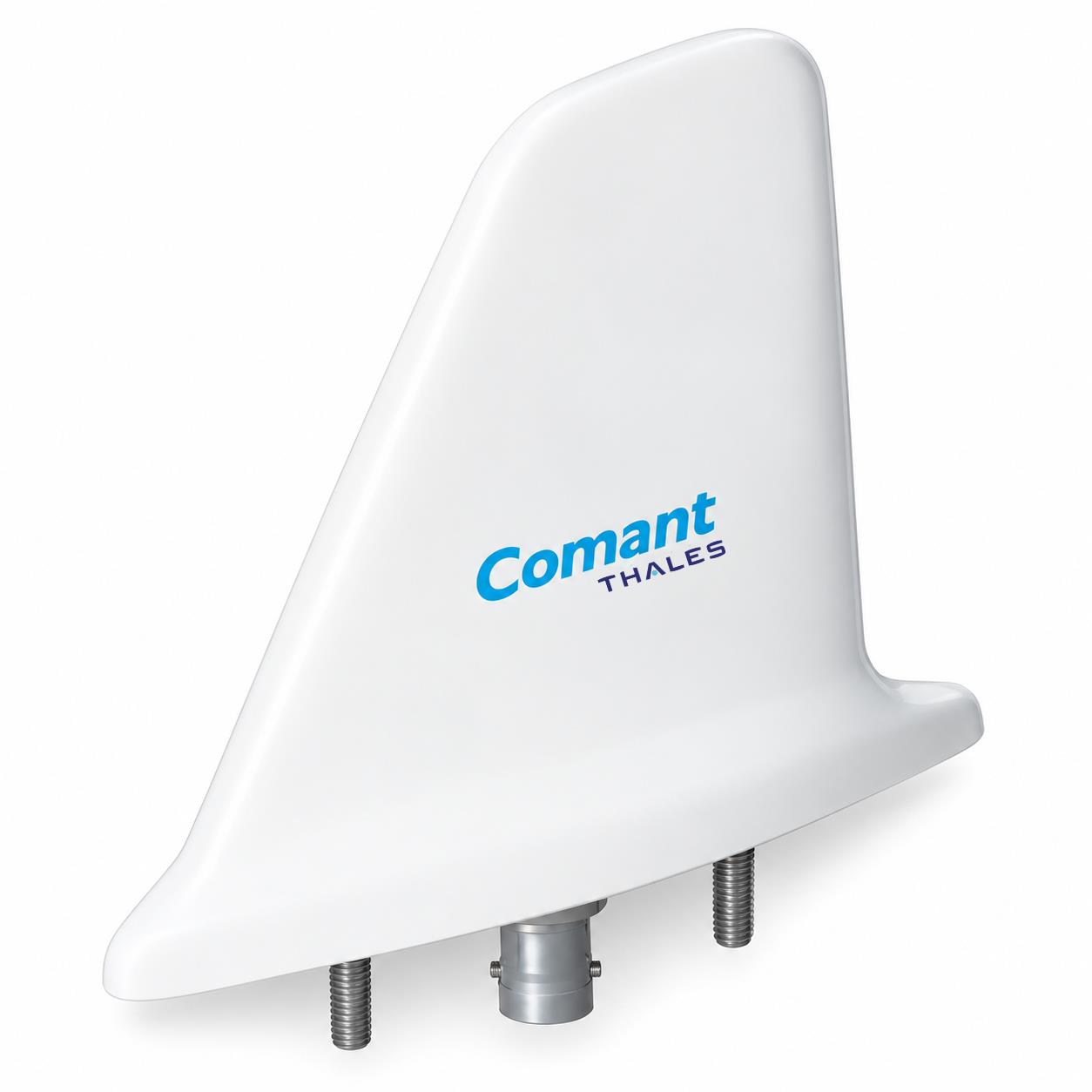

The CI 105-16 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has an extended two stud mounting configuration. Tested to the tougher DO-160D environmental requirements, it offers the best in ruggedness and performance.
This antenna (EDMO# CI-105-16) was designed specifically to replace the Honeywell Bendix-King KA60. It includes a BNC connector, covers 960–1220 MHz frequencies and is rated to 400 Knots TAS at 25,000 ft.
Features
- Encased in a glass reinforced polyester molded shell
- Extended two stud mounting configuration
- Includes a BNC connector
Specifications
Weight:
0.2 lb
Height:
3.23 in
Finish:
Polyurethane enamel
Connector:
BNC (female)
Frequency:
960–1220 MHz
VSWR:
1.5:1 @ 960–1220 MHz, maximum
1.3:1 @ 1025–1150 MHz, maximum
Polarization:
Vertical
Radiation Pattern:
Equivalent to a 1/4 wave stub
Impedance:
50Ω
Resistance DC:
Open circuit
Power RF:
2.5 KW Peak
Temperature:
-55°C to 85°C
Altitude:
70,000 ft
Airspeed:
400 Knots TAS at 25,000 ft
