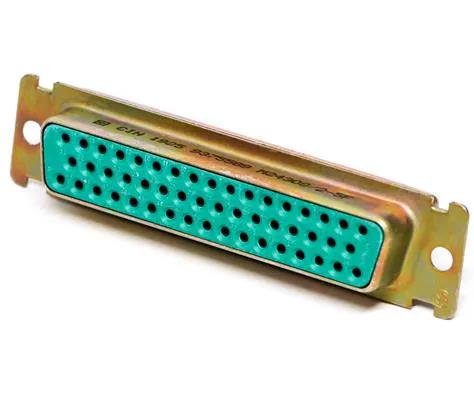

The M24308/2-5F D-subminiature connector is one of the most popular styles of connectors in the I/O category. It is used in computer, telecom, datacom, medical, and test instrumentation applications as well as in the military and aerospace fields.
Meets all MIL-C-24308 Class G specifications. Offered in Crimp and Poke and Solder Cup and PCB vertical and right-angle, offered in 9, 15, 25, 37, and 50 position plugs and sockets except right-angle
Shell Platings/Material
- Zinc plated
- Cadmium plated
- Stainless steel
Specifications
| Specification | MIL-DTL-24308 |
| Connector Style | Receptacle |
| Mounting Type | Cable or Box - Front Mount - Thru Holes |
| No of Contacts | 50 |
| Contact Style | Socket |
| Contact Size | 50 #20 |
| Crimp Wire Guage | 20, 22, 24 AWG |
| Insert Arrangement | 50 |
| Contacts Supplied | Y |
| Shell Material | Steel per ASTM A-620 |
| Shell Plating | Yellow Chromate over Cadmium |
| Shell Color | Yellow |
| Amperage Rating | 5 Amps |
| Operating Temperature °F (°C) | -85 to +302 (-65 to +150) |
| RoHS | No |
