SAE AS22759 wire is a fluoropolymer–insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.
M27500-22SD2T23 meets SAE AS22759/34 specifications with a cross-linked, modified ETFE insolation surrounding an aromatic polyamide braid that provides an EMI/RFI shielding and features a tin-plated, copper conductor with a temperature rating of 150°C — offering both flexibility and durability.

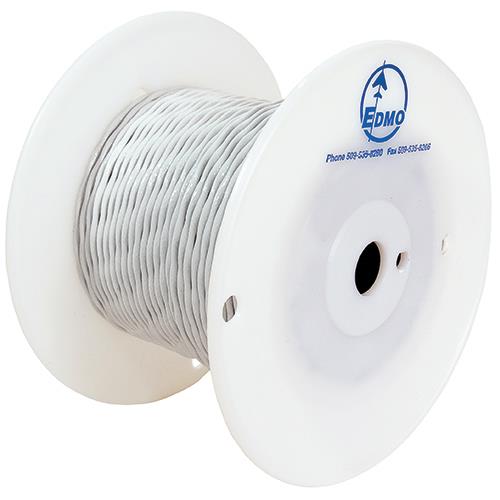

This M27500-22SD2T23 extruded XL-ETFE tefzel wire has two, tin-plated 22 AWG conductors with extruded XL-ETFE insolation, a 150°C rating. Colored white.
Features
- 600 volt rating
- 150°C temperature rating
- Excellent thermal stability
- High reliability
- High break strength and flex life
- High abrasion resistance
Specifications
AWG Size:
22
Conductor Stranding:
19/34
Number of Strands:
19
Strand Size:
34
Numbers of Conductors:
2
Outside Diameter:
0.142 in, maximum
Conductor Material:
Tinned Copper
Insulation Material:
Cross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
Shield:
Tinned Copper
Jacket Material:
Extruded XL-ETFE
Jacket Color:
White
Weight Approx:
23.75 lb/MFT
Operating Temperature:
150°C, maximum
Voltage:
600 volts
NEMA Type:
WC 27500
Mil-Spec:
M27500
