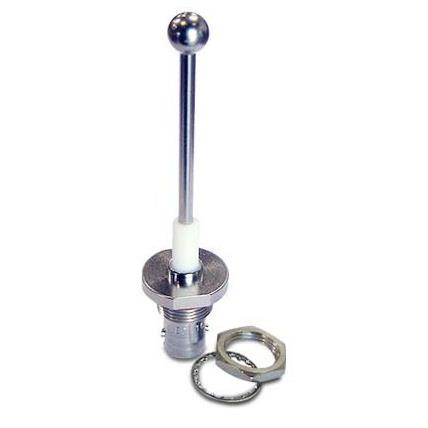

The 104-12 transponder antenna is a mono-pole antenna that has a top loaded sphere which creates a factor of reliability and safety for a shorter antenna.
This antenna offers a voltage standing wave ratio of 1.2:1 at 1,090 MHz and less than 2:1 at 1,030 MHz when connected with a 50Ω coaxial transmission line.
The 104 series antennas feature an omni-directional, vertical-polarize radiation pattern when mounted to the underside of the aircraft.
- Frequency: 1030 MHz to 1090 MHz
- Standing Wave Ratio: 1.2:1 at 1090 MHz, 2:1 at 1030 MHz
Weight: 0.02 kg
Unit of Measure: EACH
Supplier/Manufacturer SKU: 104-12
Mil Spec, TSO, Certification: N/A
HS Code: 85291040
HAZMAT:
UN#:
