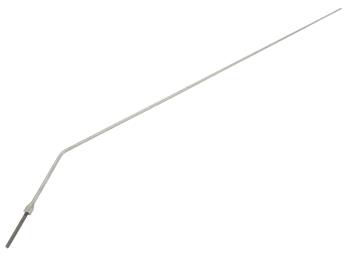

The AV-534 is a heavy-duty stainless steel quarterwave VHF communications antenna.
It is manufactured with a durable type stainless steel whip and large stress-relieved ferrule and comes complete with porcelain insulators and mounting hardware.
The antenna is designed to operate at speeds of up to 350 mph and altitudes of 50,000 ft.
It has a drag force of 0.56 lb @ 250 mph.
| Product Specifications | |
| Model | AV-534 |
| Application | Airborne Communications |
| Frequency | 118 – 137 MHz |
| Impedance | 50 Ohms Nominal |
| VSWR | 3.0:1 Maximum |
| Polarization | Vertical |
| Pattern | Omni-Directional |
| Connector | N/A |
| Max Height | 18.75″ |
| RF Power Capacity | 50 Watts |
| FAA TSO | C37d, C38d |
Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-534
Mil Spec, TSO, Certification: C37d, C38d
