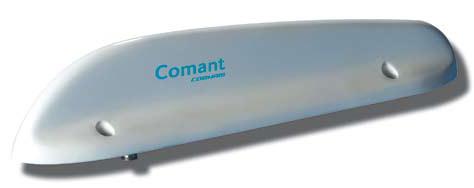

The CI 118-1 antenna is a four-through-hole-mount, low-drag, low-profile, boat-style marker beacon antenna with a BNC port. It features a 75 MHz frequency that supports high-sensitivity marker beacon receivers and is suitable for bottom mounting with both light and heavy fixed-wing single-engine and multi-engine aircraft. It is DC grounded to minimize accumulation of precipitation static and is Skydrol and rain erosion resistant.
Features
- 75 MHz frequency
- Aerodynamic base
- 4-hole mounting
- Low-drag, low-profile, boat-style housing
- For light and heavy fixed-wing single-engine and multi-engine aircraft
Specifications
Weight:
0.70 lb
Height:
2.40 in
Frequency:
75 MHz
VSWR:
1.5:1
Polarization:
Parallel to mounting plane
Radiation Pattern:
Primarily Downward
Impedance RF:
50Ω
Resistance DC:
DC Grounded
Power RF:
Receive Only
Finish:
Glossy White
Connector:
BNC (female)
Airspeed:
400 kt
Temperature Rating:
-55ºC to 85ºC
Altitude:
45,000 ft
FAA TSO:
C35d, Class A
RTCA Environmental:
DO-138
