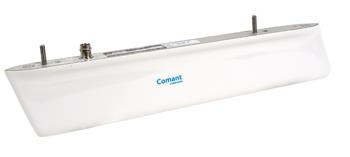

The CI 118-9 antenna is a two-internal-hole-mount style marker beacon antenna with a BNC port designed as a replacement for the Honeywell Bendix-King KA26. It features a 75 MHz frequency that supports high sensitivity marker beacon receivers and a thin profile suitable for bottom mounting with both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets. It is DC grounded to minimize accumulation of precipitation static and Skydrol and rain erosion resistant.
Features
- Drop-in replacement for the Honeywell Bendix-King KA26
- 75 MHz frequency
- Aerodynamic base
- 2-hole mounting
- Molded rigid foam construction
- For light and heavy fixed-wing single-engine and multi-engine aircraft and business jets
Specifications
Weight:
0.65 lb
Height:
2.69 in
Frequency:
75 MHz
VSWR:
1.5:1
Polarization:
Parallel to mounting plane
Radiation Pattern:
Primarily Downward
Impedance RF:
50 Ω
Resistance DC:
DC Grounded
Power RF:
Receive Only
Construction:
Molded Rigid Foam
Finish:
Glossy White
Connector:
BNC (female)
Airspeed:
400 kt
Temperature Rating:
-55ºC to 85ºC
Altitude:
45,000 ft
FAA TSO:
C35d, Class A
RTCA Environmental:
DO-138
