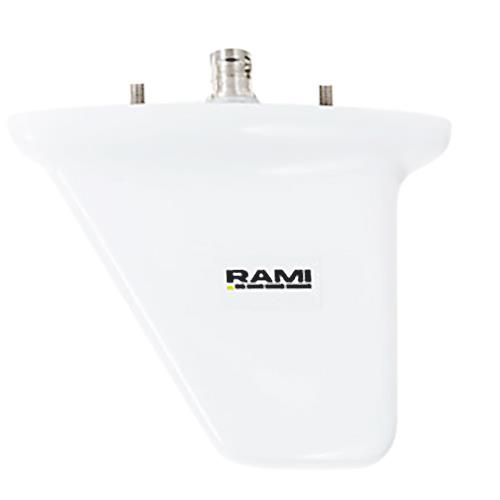

The AV-74 is a broadband, blade-type antenna designed for transponder or DME application. It is supplied with a cellular neoprene mounting pad and associated hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes of up to 50,000 ft. The antenna exhibits a drag force of 0.09 lbs @ 250 mph. This antenna is a direct replacement for the CI-105.
| Model | AV-74 |
| Application | Transponder/DME/ADS-B |
| Frequency | 960 – 1220 MHz |
| Impedance | 50 Ohms Nominal |
| VSWR | 1.5:1 Maximum |
| Polarization | Vertical |
| Pattern | Omni-Directional |
| Connector | “BNC” Female |
| Max Height | 3.4″ |
| Max. Weight | 0.2 lbs. |
| RF Power Capacity | 2.5 kW Peak |
| FAA TSO | C66c, C74c |
| Available Colors | AV-74: Gloss White AV-74(-GB): Gloss Black |
Dimensions: 75.00 x 150.00 x 160.00 mm (H x W x L)
Weight: 210.00 g
Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-74
Mil Spec, TSO, Certification: C66c, C74c
HS Code: 8529.10.4000
