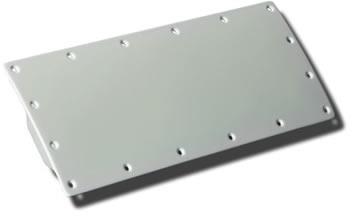

The CI 164 antenna is a sixteen-through-hole-flush-mount style curved marker beacon antenna with dual BNC ports. This antenna features a 75 MHz frequency that supports high sensitivity marker beacon receivers and provides dual marker beacon signal outputs at the antenna, eliminating the need for a splitter. It is suitable for bottom mounting on business jets.
Features
- 75 MHz frequency
- Provides for dual marker beacon signal outputs at the antenna
- Eliminates the need for a separate marker beacon splitter
- Antenna is housed in an aluminum enclosure with a glass laminate cover
- Internal components are potted in place for mechanical integrity
- Designed for curved crown surface mounting on business jets
Specifications
Weight:
1.00 lbs
Height:
Flush Mount
Frequency:
75 ± 0.15 MHz
VSWR:
1.5:1 @ 75 MHz
5.0:1 @ 75 ± 0.15 MHz
Polarization:
Horizontal
Isolation (Between Ports):
20 dB
Impedance RF:
50 Ω
Resistance DC:
DC Grounded
Power RF:
Receive Only
Construction:
Aluminum Housing, Glass Laminated Cover
Finish:
White Polyurethane Enamel/Housing Flat Grey
Connector:
BNC (Two Ports)
Temperature Range:
-55ºC to 85ºC
Altitude:
45,000 ft
FAA TSO:
C35d
