☠ HAZMAT: Additional shipping precautions are necessary for this item.

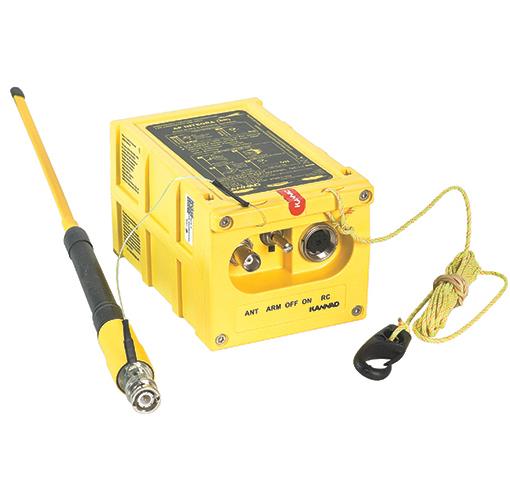

The Kannad Integra ELT For Helicopters offers the highest level of resiliency through an innovative backup antenna design. Operating independently of the aircraft, the back-up antenna will transmit your position through the 406 MHz frequency to the Cospas-Sarsat search and rescue satellites.
This version is the Extended Range (ER) of the Integra AF which operates from -40°C to +55°C
Automatic portable ELT intended to be rigidly attached to the aircraft before the crash and connected to an external antenna but readily removable from the aircraft after a crash to be used as survival ELT.
AP Integra ER Features
- Automatic portable ELT: type ELT (AP)
- Cospas-Sarsat class I: operating temperatures -40° to +55°C
- Two-frequency transmitter (121.5 / 406 MHz)
- 406.037 MHz ,operating life time 24 hours at -40°C
- 121.5 homing device, operating life time > 48 hours at -40°C
- 6 year battery life-time
- Short circuit protection
- Internal GPS receiver with internal antenna
- Integral antenna transmitter
- Auxiliary antenna
- Weight: 883 g (Max)
- Transmitter dimensions: 137 x 86 x 75.4 mm
- Overall dimensions: 285x119x86.4 mm
Application
- Flat (or vertical) installation on board helicopters only
- The “mounting bracket” must be ordered separately
Unit of Measure: EACH
Supplier/Manufacturer SKU: S1854501-01
Mil Spec, TSO, Certification:
HS Code: 85269120
HAZMAT: HAZMAT
UN#: UN3091 Lithium Metal Batteries contained in equipment
