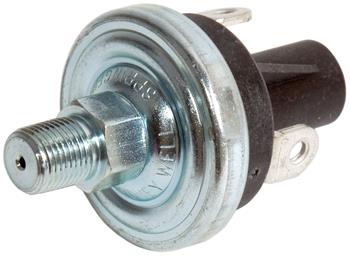

Switches are designed for use with motor oils, hydraulic and transmission oils, jet fuels and other similar hydrocarbon media. They are not recommended for use with hot water, strong acids or high pH fluids. Suitability of application is the responsibility of the user. Do not install in areas of extreme heat or vibration. Avoid installing near exhaust manifolds, mufflers, open flames or other potential sources of media ignition. Always install by using wrench on hex base.
Features
- Contacts: Silver Alloy, Gold-Plated
- Temperature Range: 40F to +250F (40C to +120C)
- Operating Pressure: 150 psi for 4, 10 and 15 psi Set Points (250 psi for 60 psi Set Points)
- Burst Pressure: 750 psi for 4, 10 and 15 psi Set Points (1250 psi for 60 psi Set Points)
- Proof Pressure: 500 psi
- Electrical Ratings: Resistive 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive 1 A @ 120 VAC, 0.5 A @ 240 VAC
Unit of Measure: EACH
Supplier/Manufacturer SKU: 76052
Mil Spec, TSO, Certification:
HS Code:
HAZMAT:
UN#:
