Home Tee Connector, Chuck Jaws, 10kv

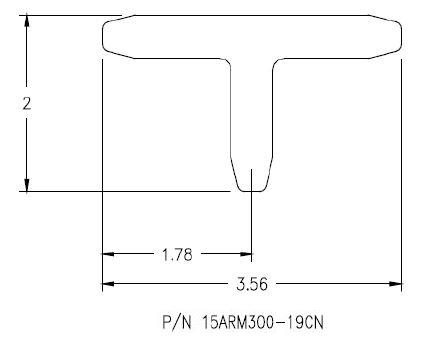

Tee Connector, Chuck Jaws, 10kv

Out of stock

Product code: 15ARM300-19CN

Tee Connector

$0.00

Description
Specification

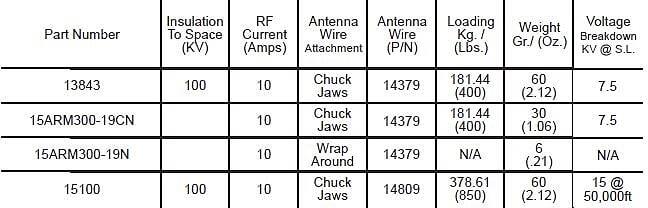

PN 15ARM300-19CN is part of the subassembly of the HF Antenna Longwire System; it is used to join 2 wire ends to increase the length of the element.

Tee Connector, Chuck Jaws

Insulation to Space
-

RF Current
10Amps

Antenna Wire/Cable Attachment
14379

Loading
181.44kg (400lb)

Weight
30g (1.06oz)

Voltage Breakdown
7.5kV @ sea level

Unit of Measure: EACH

Supplier/Manufacturer SKU: 15ARM300-19CN

Mil Spec, TSO, Certification:

HS Code: 8536.69.5050

HAZMAT:

UN#:

Tee Connector, Chuck Jaws, 10kv
