☠ HAZMAT: Additional shipping precautions are necessary for this item.

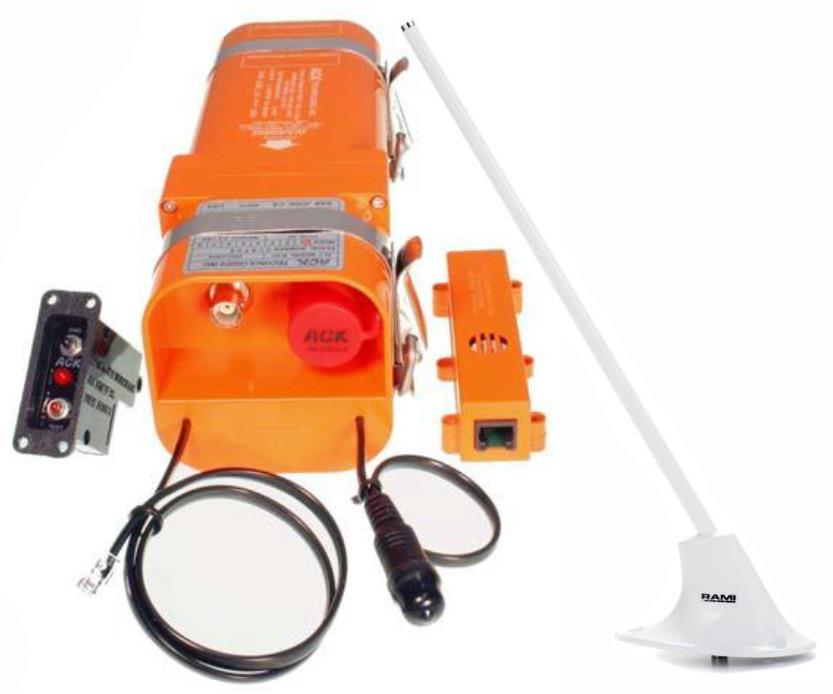

The E-04 is a 121.5/406.037 MHz emergency locator transmitter for general aviation. This model (EDMO# E-04.1) includes the 406 and 121.5 transmitter, lithium battery pack, 350 knot rod antenna, remote switch with horizontal placard, remote vertical placard, electrostatic discharger, 60 inch coax cable, audio alert, mounting tray 15 foot remote cable, audio alert cable, switch cover, and the installation/operation manual.
Specifications
Weight:
1.6 lbs (0.73 kg)
Dimensions:
7.75 x 2.85 x 2.85 in (192 x 72 x 72 mm)
Frequency:
121.5 MHz & 406.037 MHz
Modulation:
406.037 ± 2 kHz Bi-Phase (16KOG1D)
121.5 ± 6 kHz AM (3K20A3N)
Operating Temperature:
-20 to 55°C
Storage Temperature:
-55 to 85°C
Crash Activation:
4.5 ± 0.5 FpS
Battery Life:
5 Years
Battery Voltage:
12 V
Antenna Length:
20.625 in (524 mm)
