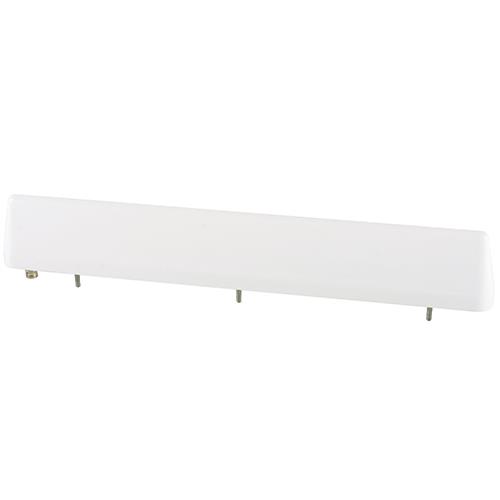

The N43 series navigation antennas for general aviation aircraft is a low profile antenna for use with 75 MHz marker beacon receivers. Designed to be mounted on the bottom of the aircraft, the N43 provide a broad, single-lobed pattern that's directed downward. The N43-1 is rugged enough for use on all subsonic aircraft.
Features
- General aviation use
- Low profile design
- Designed to be mounted on the bottom of the aircraft
Specifications
Weight:
1.0 lb
Connector:
BNC female UG-89
Finish:
white
Frequency Range:
74.75 MHz – 75.25 MHz
VSWR:
< 5:1
< 2:1 @ 75 MHz
Gain:
-10 dB
Impedance:
50Ω
Polarization:
horizontal
Radiation Pattern:
hemispherical
DC Resistance:
grounded
Power Handling:
receive only
Environmental:
FAA TSO C35c
D0138 ENV. CAT. JAJ XXX
Drag (@ sea level at 250 MPH)
< 0.5 lb
Unit of Measure: EACH
Supplier/Manufacturer SKU: DM N43-1
Mil Spec, TSO, Certification:
HS Code: 8526.10.6000
HAZMAT:
UN#:
