The AV-17 is designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications. It has a 4-bolt mounting base and a low profile configuration that makes it ideal for helicopters and low-wing aircraft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.66 lb @ 250 mph.

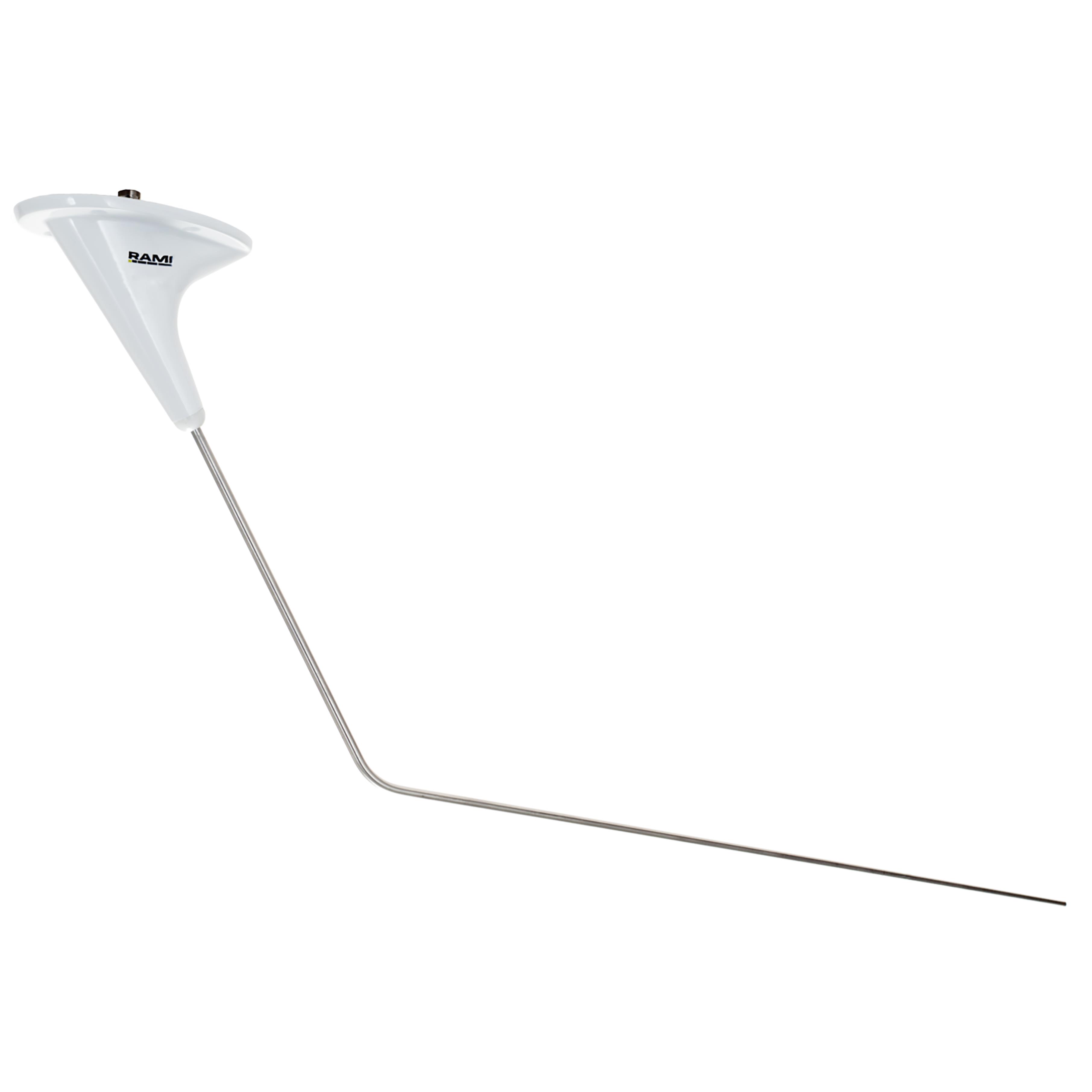

This AV-17 VHF Communications Bent Whip Antenna is white in color.
Features
- 118 MHz – 137 MHz frequencies
- Vertical polarization
- Omnidirectional pattern
- 50Ω impedance
- BNC connector
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Weight:
8 oz
Height:
9.0 in
Frequency:
118 MHz – 137 MHz
Impedance:
50 Ω Nominal
VSWR:
3.0:1, maximum
Polarization:
Vertical
Pattern:
Omni-Directional
Connector:
BNC female
Color:
White
RF Power Capacity:
30 Watts
FAA TSO:
C37d, C38d
Dimensions: 75.00 x 170.00 x 650.00 mm (H x W x L)
Weight: 550.00 g
Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-17
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
