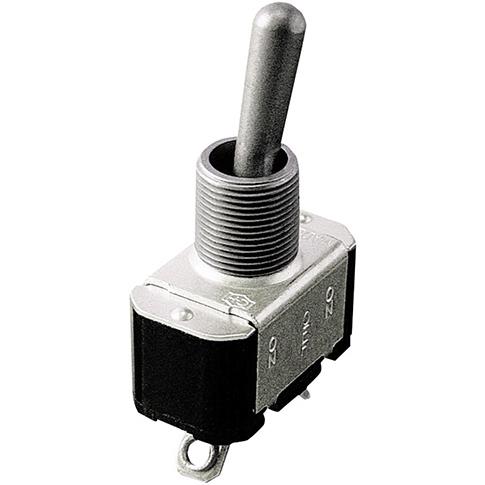

The 8800 series military purpose toggle switches have a silicone rubber seal around the lever to resist entry of contaminates such as dust, sand or water into the contact structure.
- Heavy-duty
- Solder lug
- Threaded panel mount
- Thermoset molding materials meet flame retardant requirements
- Molded-in terminal inserts and terminal numbers
- MS approved and QPL'd per MIL-S-83731
- Life: 20,000 operations at rated load 40,000 operations mechanical life
Specifications
Bushing:
15/32" - 32 thread
Temperature Range:
0°F 10 +150°F (-17.8°C to +65.6°C)
Contact Current Max:
25A
Contact Voltage AC:
115V nominal
Contact Voltage DC:
28V
Contact Configuration:
Single-pole, double-throw (SPDT)
Switch Operation:
ON-ON
MS Part Number:
MS35058-23
