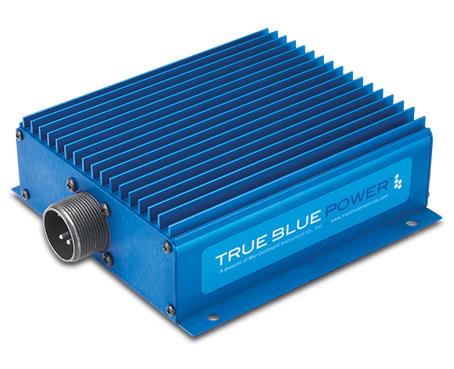

TC280 AC to DC Converter, 115VAC in, 28VDC out, 280watts

Supply 280 watts of 28-volt power to electronic equipment on board the aircraft, including USB charging ports, lighting and cabin accessories with the True Blue Power TC280 AC-to-DC aircraft voltage converter. The voltage converter is TSO certified and features a two-year limited warranty.

• Supplies 280 watts of 28-volt power to electronic equipment, including USB charging ports, lighting and cabin accessories
• Compact design — lighter and smaller than competing units
• Lightweight — 2.0 lbs
• Remote On/Off feature
• 280 watts output power
• >88% efficiency
• Input Voltage: 115 ± 10 VAC, 350-800 Hz
• Input Current: 2.8 A Nominal
• Output Voltage: 28 VAC ± 3%
• Input transient, overload, and short-circuit protection
• Rated from –65°F to +160°F (-55°C to +70°C)
• FAA TSO-C71 certified and RTCA DO-160G qualified
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty

Input Voltage
115 ± 10 VAC, 350-800 Hz

Input Current
2.8 A Nominal

Output Voltage
28 VDC ± 3%

Output Power
280 watts

Efficiency
>88%

Weight
2.0 lbs

Altitude
55,000 ft

Temperature
-65°F to +160°F (-55°C to +70°C)

Protection
Input transient, overload, short-circuit protection

Mating Connector
MS3106A-18-9S (MCI P/N 9016905-1)

Case
Anodized aluminum extrusion, blue

Certification
FAA TSO-C71 certified
RTCA DO-160G qualified
