Amplified Antenna Splitter, 1 Input, 8 Output

Options

Connector: BNC, N, SMA or TNC (Required)

Optional.... (additional cost)

• Weatherproofing
• Hi-Isolation
• Hermetically Sealed
• EMI Shielding (includes Weatherproofing)
• Networking - External Power Supply (To purchase the Networking option, you will also need to select Source and Output options below.)
• Output (Voltage to the Antenna)
• Source (Power Option) 110, 220, 240 or MC

Features

• Excellent Gain Flatness: |J1 - J8| < 1.0dB
• Amplifier Gain 14dB typical
• Extremely Flat Group Delay: Less that 1ns variation
• Phase Matched Outputs: Phase (J1 – J8) < 1.0°

Description

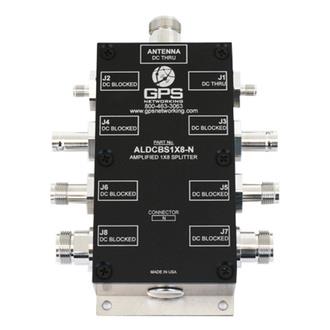

The ALDCBS1X8 GPS Amplified Splitter is a one input, eight output device based on the Wilkinson splitter design. The frequency response covers the entire L-band (all GNSS frequencies) with excellent gain flatness. In the standard configuration without external power, Output 1 (J1) passes DC from the connected GPS device through the splitter to the input (antenna port), allowing the GPS receiver to power both an active antenna and the splitter’s internal amplifier. The other RF outputs (J2-J8) are DC blocked and loaded with 200 resistors to simulate the antenna current draw to prevent false antenna alarm faults.
