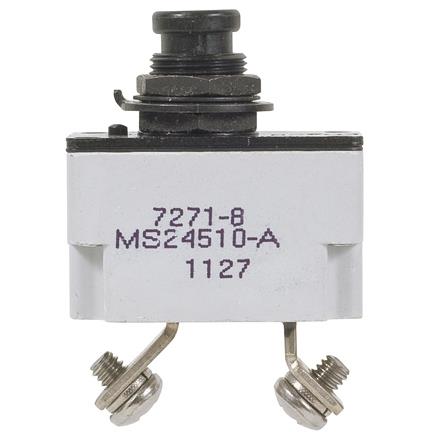

The Klixon® 7271 series circuit breakers are designed to utilize less space behind the panel while protecting wire and cable in aircraft and ground support equipment on 120 VAC, 400 Hz or 30 VDC systems. Inherently resistant to shock and vibration, the disc element is capable of calibration within close tolerances throughout the service life of the breaker. The 7271 series circuit breaker feature a single pole, push button actuator that pops out for trip indication.
Includes hardware.
- Trip-free operation
- Snap-acting thermal element
- Small size
- Light weight
- MIL-C-5809 qualified
- Current ratings (3 to 35 amps)
- High interrupting capacity
Unit of Measure: EACH
Supplier/Manufacturer SKU: 7271-8-15
Mil Spec, TSO, Certification:
HS Code: 85362000
HAZMAT:
UN#:
