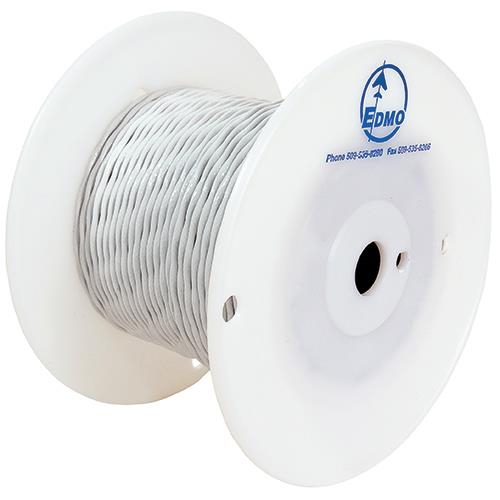

M27500 Extruded XL-ETFE Tefzel Wire, 22AWG, 1 x M22759/34 Inner Conductor

SAE AS22759 wire is a fluoropolymer–insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.

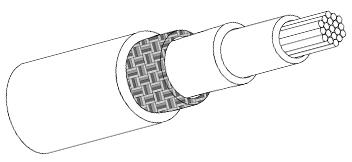

Meets SAE AS22759/34 specifications with a cross-linked, modified ETFE insulation surrounding an aromatic polyamide braid that provides an EMI/RFI shielding and features a tin-plated, copper conductor with a temperature rating of 150°C — offering both flexibility and durability.

Features

• 600 volt rating
• 150°C temperature rating
• Excellent thermal stability
• High reliability
• High break strength and flex life
• High abrasion resistance
