The CI-205-3 is an eight-through-hole-mount style VOR/LOC/GS towel bar antenna set with BNC ports. This antenna set provides a single coax cable run to the avionics location and features a low weight and low drag structure that minimizes helicopter rotor down wash forces. It is suitable for mounting on the vertical stabilizer or tail boom on light fixed-wing single-engine and multi-engine aircraft and helicopters.

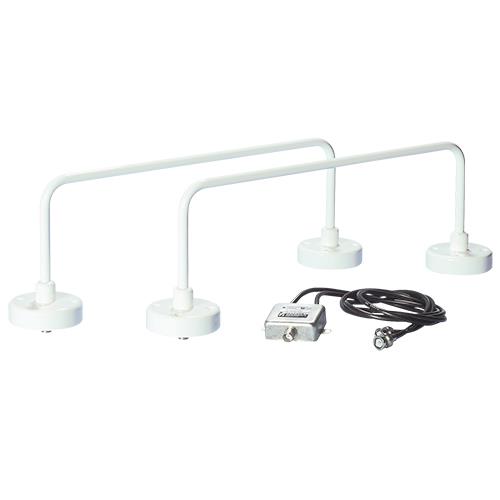

The CI-205-3 antenna set includes two towel bar style sensor elements, each with a BNC output connector; one signal combiner to single output with BNC connector; and embedded coax cables.
Features
- Operates on 108–118 MHz (VOR/LOC) & 329–335 MHz (GS) frequencies
- Low weight and drag
- Minimizes rotor down wash forces
- Single BNC output connector
- For light fixed-wing single-engine and multi-engine aircraft and helicopters
Specifications
Weight:
1.75 lb
Height:
5.25 in
Frequency:
108–118 MHz (VOR/LOC)
329–335 MHz (GS)
VSWR:
5.0:1
Polarization:
Horizontal
Radiation Pattern:
Omnidirectional
Impedance:
50 Ω
RF Power:
Receive Only
Material:
Delrin Mounts/Aluminum Towel Bar
Finish:
White Polyurethane Enamel
Connector:
BNC (female)
Temperature Range:
-55ºC to 85ºC
Altitude:
55,000 ft
Mounting:
Eight-hole (each antenna)
FAA TSO:
C34c, C36c, C40a
RTCA Environmental:
DO-160D
