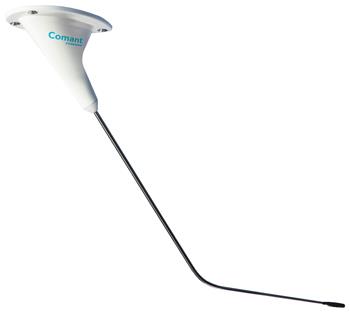

The CI 292-2 antenna (EDMO# CI-292-2) is a three-through-hole-mount style VHF communications bare bent whip antenna with a BNC port. This antenna is equivalent to the CI 291 VHF communications whip antenna except it features a bent tapered stainless steel radiator. It is designed with a narrow mounting pattern and is suitable for bottom mounting on light fixed-wing single-engine and multi-engine aircraft.
Features
- 118-137 MHz frequencies
- Stainless steel bent whip radiator
- Vertical polarization
- Omnidirectional radiation pattern
- BNC female connectors
- Designed for light fixed-wing single-engine and multi-engine aircraft
Specifications
Weight:
0.75 lb
Height:
8.5 in
Total Length:
23.5 in
Frequency:
118–137 MHz
VSWR:
3.0:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance RF:
50 Ω
Power RF:
50 W
Material:
Cast Housing / Stainless Steel Whip
Finish:
White Polyurethane Enamel
Connector:
BNC Female
Temperature:
-55°C to 85°C
Altitude:
50,000 ft.
Airspeed:
250 KTAS
FAA TSO:
C37d, C38d
RTCA Environmental:
DO-160D
